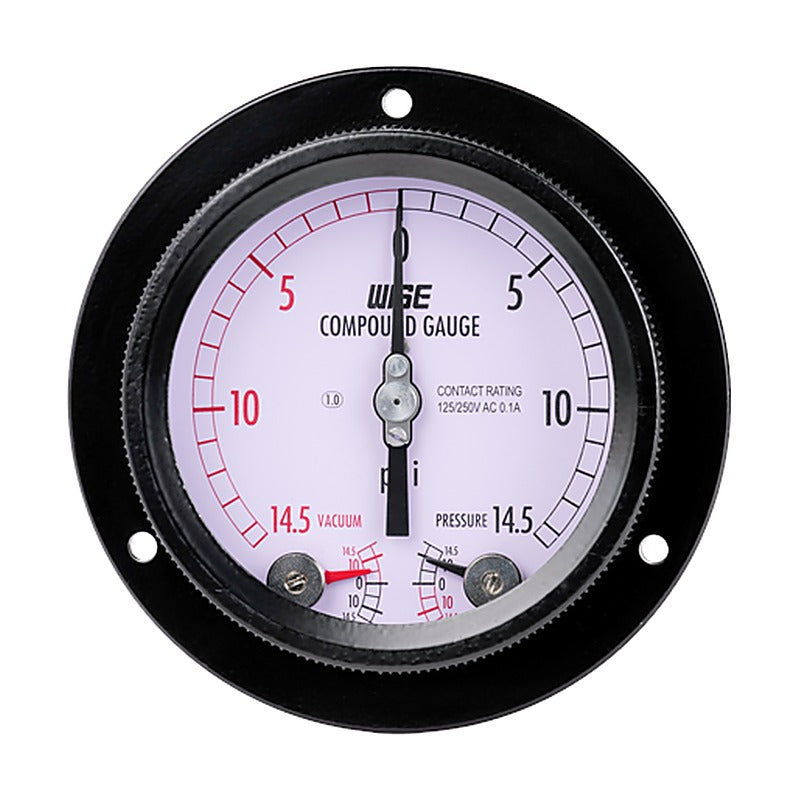

WISE P535, P536 Indicating Type Pressure Switch

Indicating pressure switch combining a dial gauge with micro-switch (SPDT) contacts with fixed deadband, suited to corrosive fluids and high-pressure service. P535 is single setpoint, P536 dual setpoint.

Key features

Micro contact switching, one SPDT (P535) or two SPDT (P536)
Indicator accuracy ±1.0 % FS; alarm setting ±3.0 % FS
Repeatability ±1.0 % of adjustable range
316SS C-type Bourdon tube and pressure connection
PED 2014/68/EU Annex III Module H

Specifications

Nominal size	100 mm (L type), 160 mm (A type)
Adjustable range	-0.1~0 to -0.1~2.5 MPa; 0~0.1 to 0~35 MPa
Accuracy	Indicator ±1.0 % FS; alarm setting ±3.0 % FS
Contact rating 160 mm	AC 125/250 V 15 A; DC 125 V 0.4 A (resistive)
Contact rating 100 mm	AC 250 V 3 A / 125 V 5 A; DC 30 V 4 A
Case / cover	ALDC 12.1 die-cast aluminium, painted
Process connection	3/8", 1/2" PT, NPT, PF
Conduit connection	160 mm: 3/4" PF; 100 mm: M20 x 1.5
Temperature	Ambient -20~65 °C; fluid max. 100 °C
Certificates	PED 2014/68/EU Annex III Module H
Ordering options	Size, mounting, connection, unit, range, 2/3-colour dial
Source	WISE data sheet PD05-06

P535		Setpoint: Single \| Contact: One SPDT \| Size: 100 / 160 mm
P536		Setpoint: Dual \| Contact: Two SPDT \| Size: 100 / 160 mm
