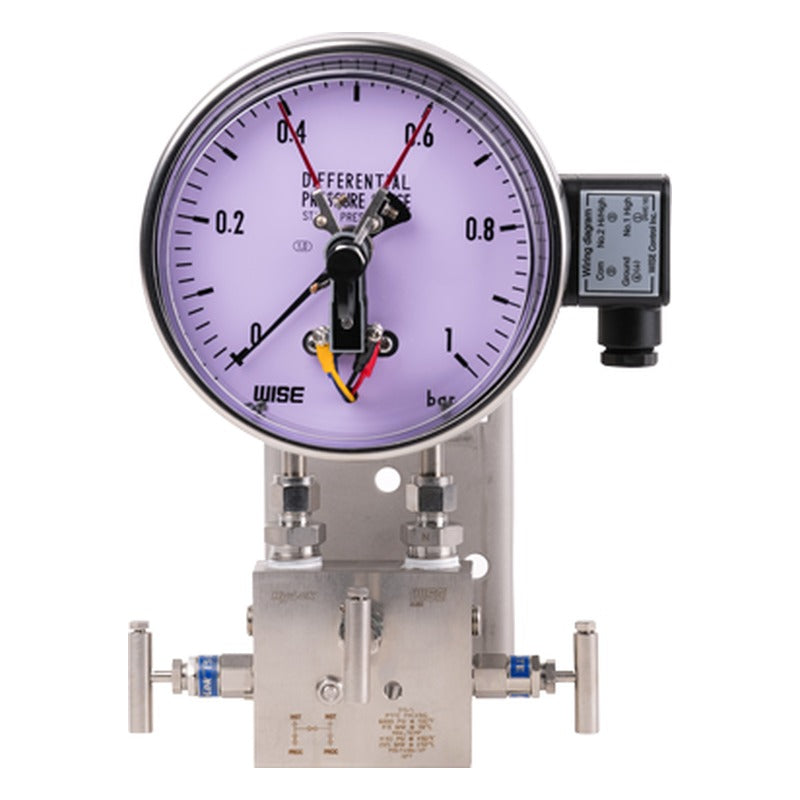

WISE P601, P602 Electrical Contact Differential Pressure Gauge

Single-bellows differential pressure gauge with electrical contacts for alarm and control, typically used to signal the right time to replace air and sludge filters. Rated for 5 MPa static pressure.

Key features

P601 single contact, P602 dual contact
316L SS bellows element, 316SS pressure connection
Ranges 0~30 kPa to 0~1.5 MPa
2" pipe mounting bracket supplied as standard
Optional 3-way / 5-way manifold valve and remote seal

Specifications

Nominal size	100 and 160 mm
Range	0~30 kPa to 0~1.5 MPa
Accuracy	±1.0 % or ±1.5/1.6 % of full scale
Max. static pressure	5 MPa
Contact rating	AC 230 V 0.12 A / 110 V 0.24 A; DC 220 V 0.1 A
Element	Single bellows, 316L SS
Case / window	304SS bayonet; polycarbonate
Process connection	1/4" NPT(F); 1/2" NPT(F) with manifold
Conduit connection	M20 x 1.5 (1/2", 3/4" NPT(F) option)
Temperature / protection	Ambient -20~65 °C; fluid max. 100 °C; IP65
Ordering options	Contact function, bracket, unit, range, 3-/5-way manifold (316SS, Monel), remote seal
Source	WISE data sheet PD06-01

P601		Contact: Single \| Static: 5 MPa \| Size: 100 / 160 mm
P602		Contact: Dual \| Static: 5 MPa \| Size: 100 / 160 mm

Electrical Contact GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P601, P602 Electrical Contact Differential Pressure Gauge

Brand WISE·Electrical Contact Gauges

Available part numbers (2)

P601, P602

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
