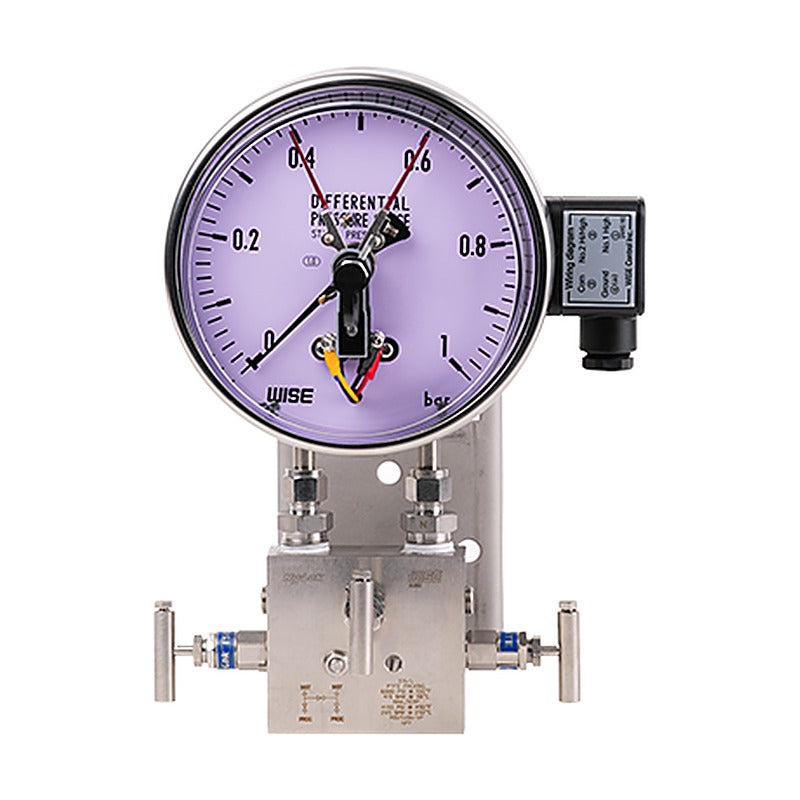

WISE P611, P612 Electrical Contact High Static DP Gauge

High static pressure bellows differential pressure gauge with electrical contacts for alarm and control, rated for 25 MPa static pressure; used for filter monitoring and process DP alarms.

Key features

P611 single contact, P612 dual contact
Max. working (static) pressure 25 MPa
316L SS bellows, external zero adjustment
±1.6 % FS standard, ±1.0 % FS optional
Optional 3-way / 5-way manifold valve and remote seal

Specifications

Nominal size	100 and 160 mm
Range	0~30 kPa to 0~1.5 MPa
Accuracy	±1.6 % FS (std), ±1.0 % FS (opt)
Max. static pressure	25 MPa
Contact rating	AC 230 V 0.12 A / 110 V 0.24 A; DC 220 V 0.1 A
Element	Bellows, 316L SS
Case / window	304SS bayonet; polycarbonate
Process connection	1/4" NPT(F); 1/2" NPT(F) with manifold
Conduit connection	M20 x 1.5 (F) (1/2", 3/4" NPT option)
Temperature / protection	Ambient -20~65 °C; fluid max. 100 °C; IP65
Ordering options	Contact function, bracket, unit, range, 3-/5-way manifold (316SS, Monel), remote seal
Source	WISE data sheet PD06-02

P611		Contact: Single \| Static: 25 MPa \| Size: 100 / 160 mm
P612		Contact: Dual \| Static: 25 MPa \| Size: 100 / 160 mm

Electrical Contact GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P611, P612 Electrical Contact High Static DP Gauge

Brand WISE·Electrical Contact Gauges

Available part numbers (2)

P611, P612

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
