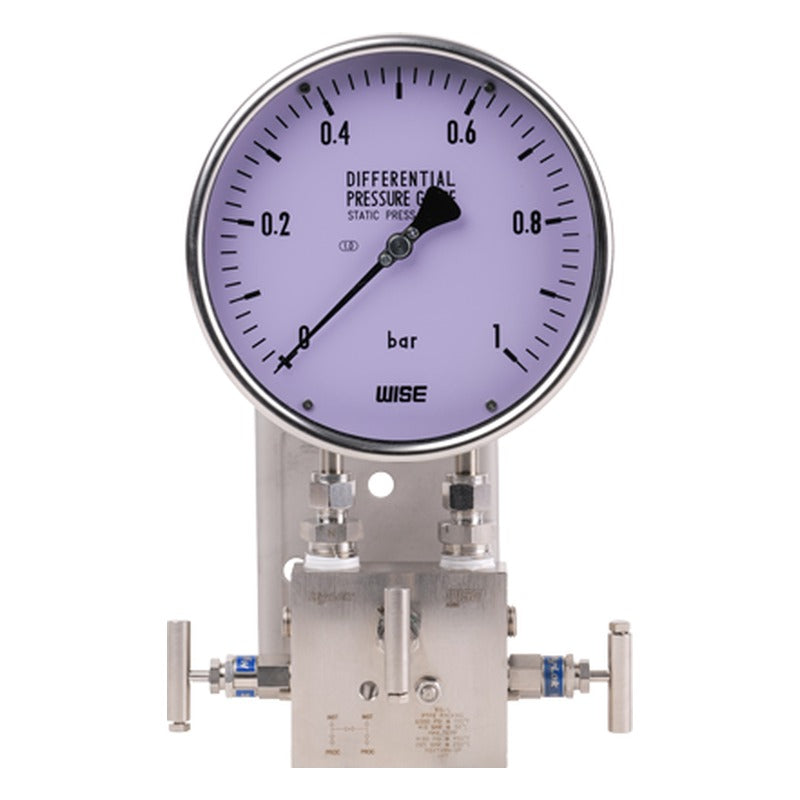

WISE P620, P630 Differential Pressure Gauge

Stainless steel bellows differential pressure gauge with force-balance mechanism for direct reading of differential pressure from 1 kPa to 1.5 MPa. P620 is rated 5 MPa static, P630 25 MPa static.

Key features

Two 316L SS bellows on a force balance for direct DP reading
Ranges from 0~1 kPa up to 0~1.5 MPa
External zero adjustment; glycerin or silicone filling options
ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC Db
IP67 304SS bayonet case with safety glass

Specifications

Nominal size	100 and 160 mm
Range	0~1 kPa to 0~1.5 MPa
Accuracy	±1.6 % FS (std), ±1.0 % FS (opt)
Max. static pressure	P620: 5 MPa; P630: 25 MPa
Element	Bellows, 316L SS
Case / window	304SS bayonet; safety glass
Process connection	1/4" NPT(F); 1/2" NPT(F) manifold; 1/2" NPT(M)
Temperature	Ambient -20~65 °C (-40 °C silicone); fluid max. 100 °C
Protection	IP67 (EN60529/IEC529)
Certificates	ATEX II 2G Ex h IIC T6...T1 Gb; ATEX II 2D Ex h IIIC T85°C...T450°C Db
Ordering options	Mounting, bracket, unit, range, filling, 3-/5-way manifold (316SS, Monel), remote seal
Source	WISE data sheet PD06-01 (P620.P630)

P620		Static: 5 MPa \| Size: 100 / 160 mm \| Range: 0~1 kPa to 0~1.5 MPa
P630		Static: 25 MPa \| Size: 100 / 160 mm \| Range: 0~1 kPa to 0~1.5 MPa

Differential Pressure GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P620, P630 Differential Pressure Gauge

Brand WISE·Differential Pressure Gauges

Available part numbers (2)

P620, P630

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
