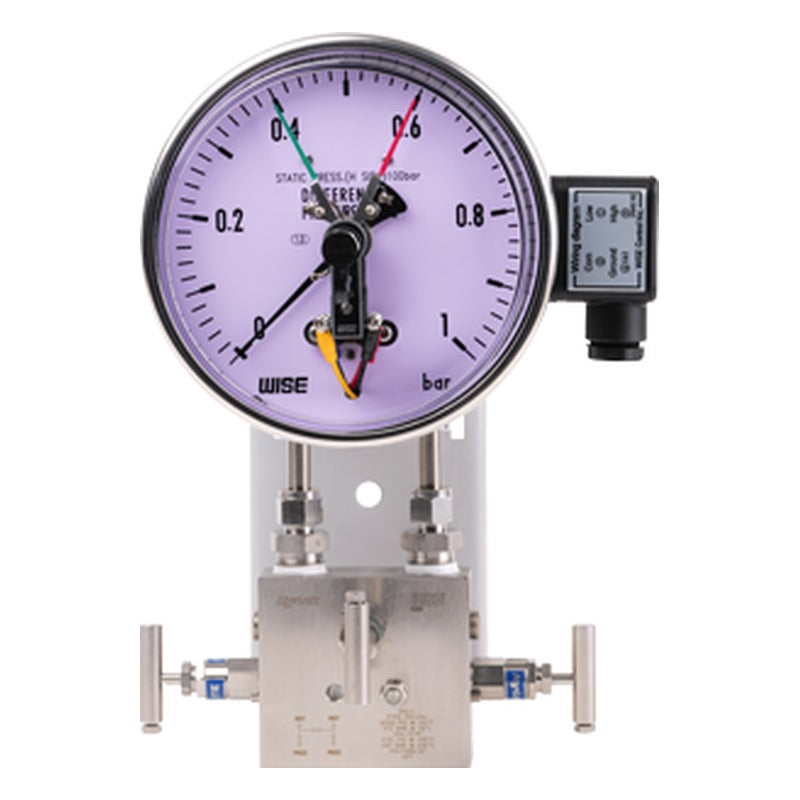

WISE P651, P652 Electrical Contact Differential Pressure Gauge

160 mm twin-bellows differential pressure gauge with magnetic snap-action electrical contacts for DP alarm and control, measuring 25 kPa to 2.0 MPa at up to 10 MPa static pressure.

Key features

P651 for 0~25 kPa to 0~0.25 MPa; P652 for 0~0.4 to 0~2.0 MPa
Twin stainless bellows on a force balance for direct DP reading
Bellows in 316L SS, Monel or Hastelloy-C
IP67 304SS bayonet case with polycarbonate window
PED 2014/68/EU Annex III Module H

Specifications

Nominal size	160 mm
Range	0~25 kPa to 0~2.0 MPa
Accuracy	±1.6 % FS (std), ±1.0 % FS (opt), within set range
Max. static pressure	10 MPa
Contacts	Magnetic snap-action, max. 30 W / 50 VA
Element	Bellows: 316L SS, Monel or Hastelloy-C
Case / window	304SS bayonet; polycarbonate
Process connection	1/4" NPT(F); 1/2" NPT(F) with manifold
Conduit connection	M20 x 1.5 (1/2", 3/4" NPT(F) option)
Temperature / protection	Ambient -20~65 °C; fluid max. 100 °C; IP67
Ordering options	Contact function, accuracy, bracket, unit, range, dial, manifold
Source	WISE data sheet PD06-03

P651		Range: 0~25 kPa to 0~0.25 MPa \| Static: 10 MPa
P652		Range: 0~0.4 to 0~2.0 MPa \| Static: 10 MPa
