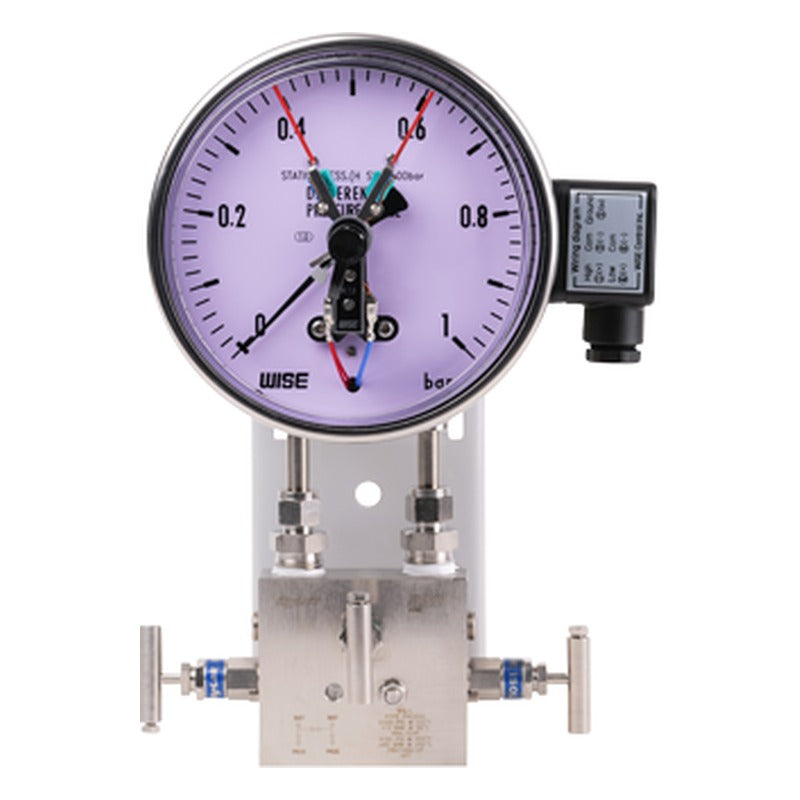

WISE P691, P692 Inductive Contact Differential Pressure Gauge

160 mm bellows differential pressure gauge with inductive (non-contact) alarm contacts for hazardous-area DP alarm and control, measuring 25 kPa to 2.0 MPa at up to 10 MPa static pressure.

Key features

P691 for 0~25 kPa to 0~0.25 MPa; P692 for 0~0.4 to 0~2.0 MPa
Inductive slot-sensor contacts, no mechanical load on the pointer
Certified KCs Ex ia IIC T6 and NEPSI Ex ia IIC T6 Ga
316L SS bellows, 316SS pressure connection
IP67 304SS bayonet case; silicone filling option

Specifications

Nominal size	160 mm
Range	0~25 kPa to 0~2 MPa
Accuracy	±1.6 % FS, within set range
Max. static pressure	10 MPa
Contacts	Inductive contact (safety barrier required)
Element	Bellows, 316L SS
Case / window	304SS bayonet; polycarbonate
Process connection	1/4" NPT(F); 1/2" NPT(F) with manifold
Conduit connection	M20 x 1.5 (1/2", 3/4" NPT(F) option)
Temperature / protection	Ambient -20~65 °C (-40 °C silicone); IP67
Certificates	KCs Ex ia IIC T6; NEPSI Ex ia IIC T6 Ga
Source	WISE data sheet PD06-07

P691		Range: 0~25 kPa to 0~0.25 MPa \| Contact: Inductive
P692		Range: 0~0.4 to 0~2.0 MPa \| Contact: Inductive

Electrical Contact GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P691, P692 Inductive Contact Differential Pressure Gauge

Brand WISE·Electrical Contact Gauges

Available part numbers (2)

P691, P692

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
