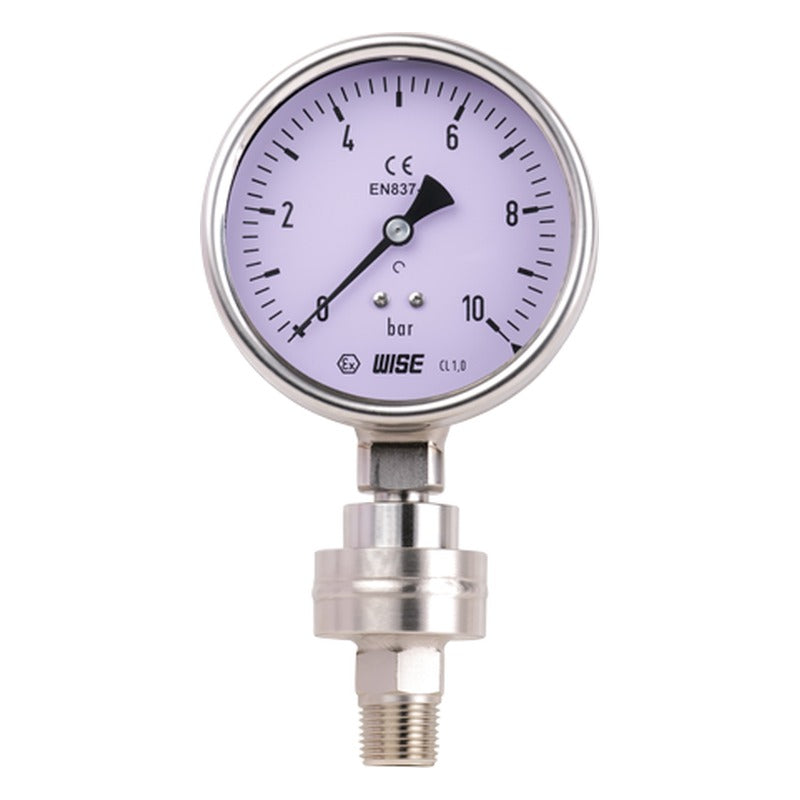

WISE P701 Compact Diaphragm Seal Pressure Gauge

Compact diaphragm seal pressure gauge with an internal diaphragm and welded upper and under flanges, requiring no sealing. Suited to corrosive, contaminated, hot or viscous media in chemical and food processes.

Key features

Welded upper and under flange design with no sealing
Compact 40 mm OD internal diaphragm
Combines with P252/P258 gauges in 63, 80 and 100 mm
Diaphragm in 316L SS, Hastelloy-C, Tantalum or Monel
Silicone oil filled, IP65 protection

Specifications

Gauge sizes	63, 80, 100 mm (P252 / P258 gauge)
Scale range	-0.1~0 to -0.1~2.4 MPa; 0~0.1 to 0~3.5 MPa
Accuracy	±1.6% FS (63/80 mm); ±1.0% FS (100 mm)
Diaphragm	316L SS, Hastelloy-C, Tantalum, Monel (40 mm OD)
Upper flange	316SS
Under flange (process side)	316SS, 316L SS, Monel, Hastelloy-C
Process connection	1/4", 3/8", 1/2" PT, NPT; 1/4" PT (F)
Working temperature	Ambient -20~65 °C; fluid max. 100 °C
Over range protection	130% of full scale
Filling / protection	Silicone oil / IP65
Ordering options	Gauge model and mounting, flange/diaphragm material, connection, unit, range, under flange material
Source	WISE data sheet PD07-01

P701

Seal OD: 40 mm | Fluid: Max. 100 °C
