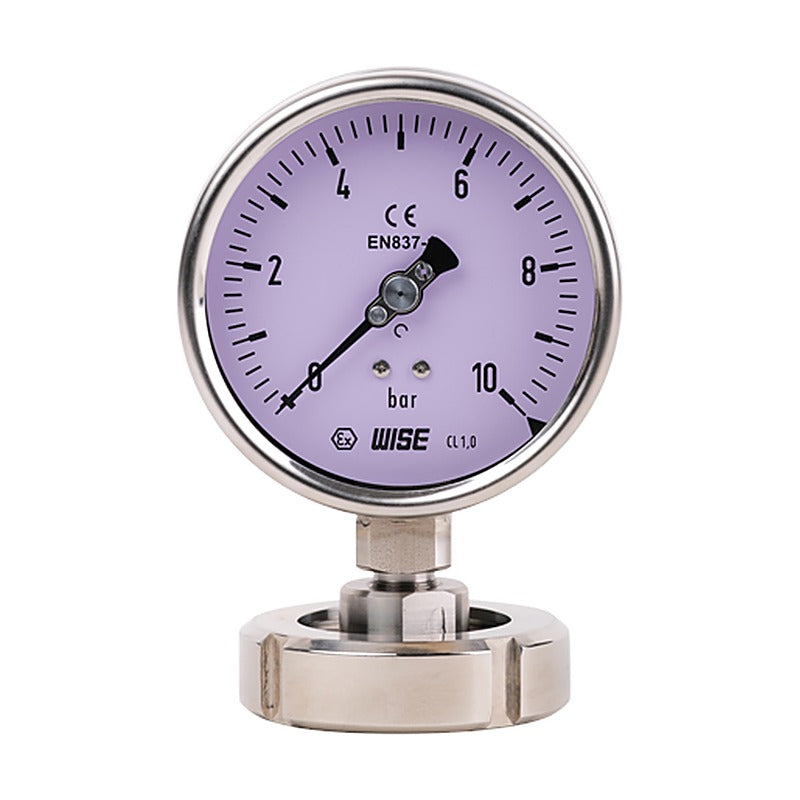

WISE P751-P756 Sanitary Diaphragm Seal Pressure Gauge

WISE P751-P756 Sanitary Diaphragm Seal Pressure Gauge

Sanitary pressure gauge with electropolished 316L SS diaphragm seal and FDA food-grade fill. Offered in nut, clamp, male screw, flange and homogenizer connections for food, beverage, biochemical and pharmaceutical lines.

Key features

  • Six connection styles: nut, clamp, male screw, flange, homogenizer
  • Electropolished 316L SS diaphragm, Ra ≤ 0.8 µm
  • FDA certified food grade fill oil
  • 63, 80 and 100 mm dials, optional liquid filling
  • ATEX Ex h certified

Specifications

Nominal diameter 63, 80, 100 mm
Accuracy ±1.6% FS (63/80 mm); ±1.0% FS (100 mm)
Pressure range 0~0.1 to 0~50 MPa; vacuum/compound ranges (by model)
Body / connection 316SS
Diaphragm 316L SS, electropolished, Ra ≤ 0.8 µm
System filling Food grade oil (FDA certified)
Working temperature Ambient -20~65 °C; fluid max. 121 °C
Over range protection 130% of full scale
Certificates ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85ºC…T450ºC Db
Ordering options Gauge size and mounting (bottom / lower back, liquid filling), connection size, unit, range
Source WISE data sheet PD07-04
P751 Conn: Nut IDF/DIN 1"-2" | Size: 63-100
P752 Conn: Clamp 1"-3" | Size: 63-100 mm
P753 Conn: PF 3/4"-1 1/2" male | Size: 63-100
P754 Conn: Flange | Size: 63-100 mm
P755 Conn: Homogenizer | Size: 63-100 mm
P756 Conn: Homogenizer flange | Size: 63-100
Pressure GaugesWISE
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P751-P756 Sanitary Diaphragm Seal Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (6)

P751, P752, P753, P754, P755, P756

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P751Conn: Nut IDF/DIN 1"-2" | Size: 63-100
P752Conn: Clamp 1"-3" | Size: 63-100 mm
P753Conn: PF 3/4"-1 1/2" male | Size: 63-100
P754Conn: Flange | Size: 63-100 mm
P755Conn: Homogenizer | Size: 63-100 mm
P756Conn: Homogenizer flange | Size: 63-100
