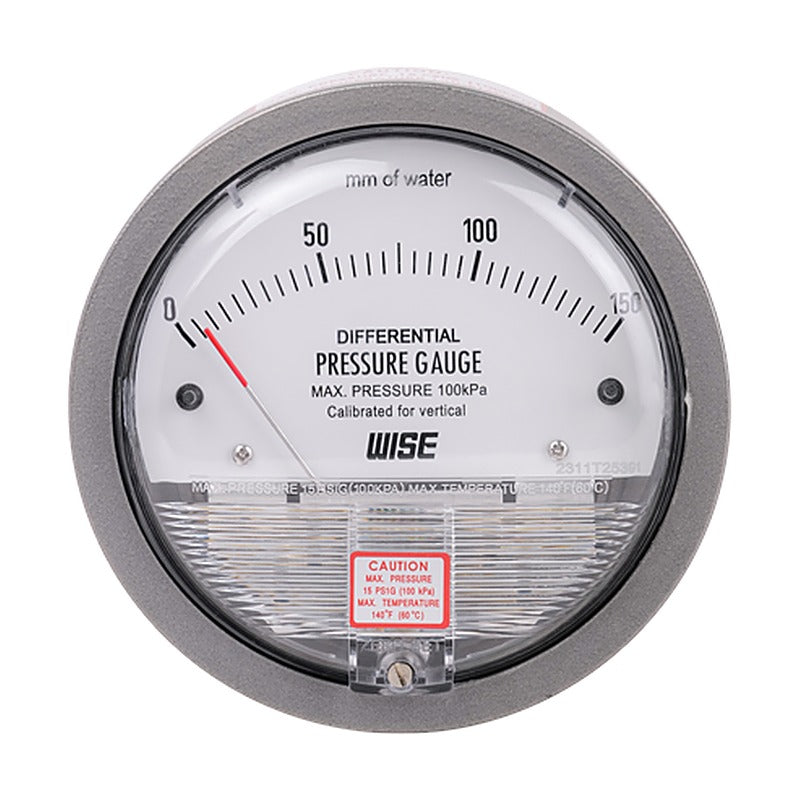

WISE P880 Low Differential Pressure Gauge

Low differential pressure gauge for air and gas ducts, furnace draft, negative pressure rooms and filter or venturi differential pressure. 100 mm aluminium case with wide range selection.

Key features

Ranges from -5~5 to 0~3000 mmH2O
100 mm die-cast aluminium case
Silicone rubber sensing element
Max. pressure protection 100 kPa
Optional 3-color dial and mounting bracket

Specifications

Nominal diameter	100 mm
Scale range	-0.25~0.25 kPa to 0~50 kPa (-5~5 to 0~3000 mm)
Accuracy	±2.0% FS; ±3.0% (-5~5, -25~25, 0~10 mm); ±4.0% (0~3000 mm)
Pressure connection	1/8" NPT (F)
Element	Silicone rubber
Case / window	Gray painted aluminium die casting / acrylic
Working pressure	Steady 75% FS; max. protection 100 kPa
Ambient temperature	-10~60 °C
Mounting	Back connection, flush, case center mounting plate
Ordering options	Unit (mm/kPa), range, 2 or 3 color dial, mounting bracket
Source	WISE data sheet PD08-08

P880

Size: 100 mm | Range: -5~5 to 0~3000 mm
