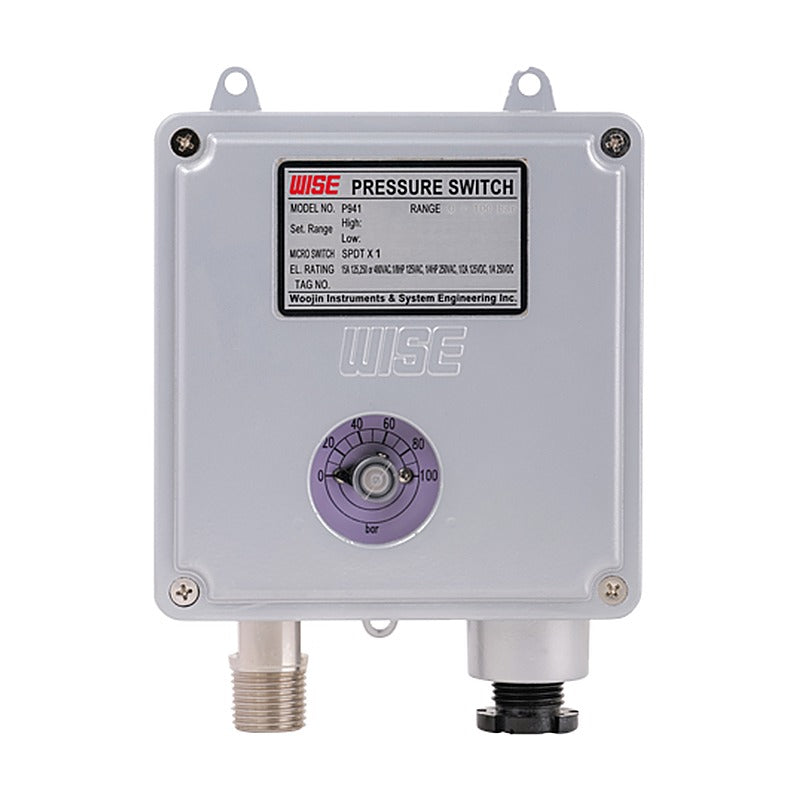

WISE P941/P942 Local Setpoint Weatherproof Pressure Switch

Weatherproof micro contact pressure switch with local setpoint adjustment, suited to corrosive fluids and high pressure. Single (P941) or dual (P942) setpoint with fixed dead band.

Key features

Single or dual setpoint versions
Adjustable range up to 0~35 MPa
316SS element and pressure connection
Fixed dead band, ±1.0% repeatability
Silver gray painted ALDC 12.1 case

Specifications

Adjustable range	-0.1~0 to -0.1~2.5 MPa; 0~0.1 to 0~35 MPa
Contact	Micro contact, one or two SPDT
Contact rating	AC 125/250 V 15 A; DC 125 V 0.4 A (resistive)
Repeatability	±1.0% of adjustable range
Dead band	Fixed; ~5% (1 SPDT), ~10% (2 SPDT)
Element / connection	316SS
Process connection	3/8", 1/2" PT, NPT, PF
Conduit connection	1/2" PF (P941); 3/4" PF (P942)
Working temperature	Ambient -20~65 °C; fluid max. 100 °C
Ordering options	Process connection, connection type, unit, range, accessories
Source	WISE data sheet PD09-04

P941		Setpoint: Single \| Conduit: 1/2" PF
P942		Setpoint: Dual \| Conduit: 3/4" PF

Pressure SwitchesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P941/P942 Local Setpoint Weatherproof Pressure Switch

Brand WISE·Pressure Switches

Available part numbers (2)

P941, P942

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
