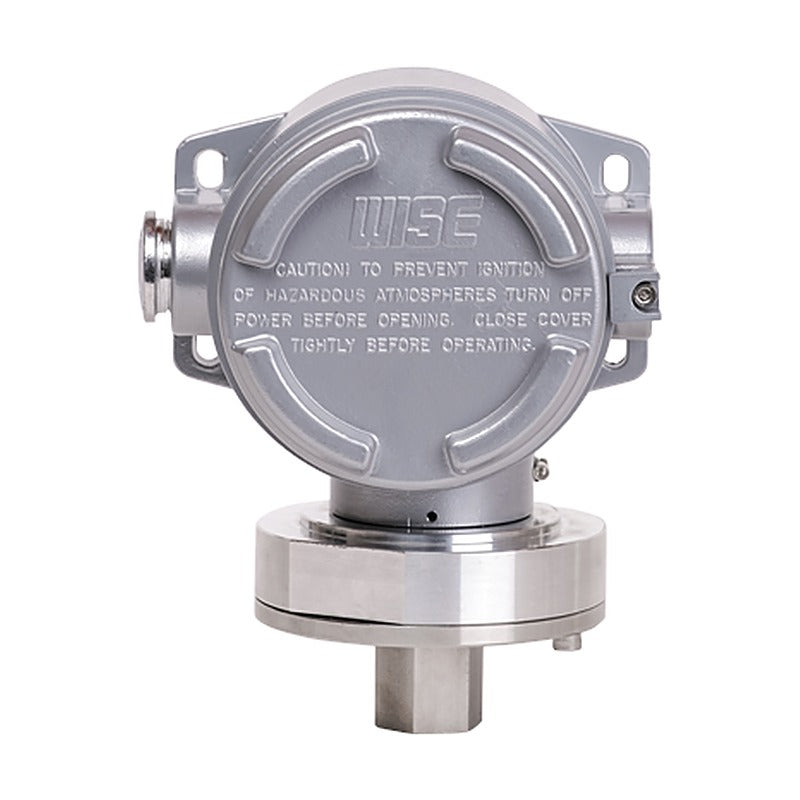

WISE P954 Explosion Proof Pressure Switch

Explosion proof diaphragm type pressure switch with force balanced, piston actuated sensing and internal micro switch. Adjustable from -0.9 to 275 bar for gas and oil lines.

Key features

ATEX, IECEx and KCs Ex db / Ex tb certified
One or two SPDT, ±1.0% or ±0.5% repeatability
Adjustable range -0.9 to 275 bar
IP67, ambient down to -40 °C (silicone O-ring)
Conduit 1/2", 3/4", 1" NPT or M20x1.5 options

Specifications

Adjustable range	-0.9 to 275 bar
Contact	Micro contact, one SPDT or two SPDT (single setpoint)
Contact rating	AC 125/250 V 15 A; DC 125 V 0.5 A (resistive), 0.03 A (inductive)
Repeatability	±1.0% or ±0.5% of adjustable range
Wetted materials	316SS / 316L SS, Hastelloy-C, Monel
Process connection	1/2" NPT (F); 1/4"-1/2" PF/PT/NPT via union
Conduit connection	3/4" NPT (F) std.
Degree of protection	IP67
Working temperature	Ambient -25~65 °C (Viton) / -40~65 °C (silicone); fluid max. 100 °C
Certificates	ATEX II 2G Ex db IIC T6 Gb; ATEX II 2D Ex tb IIIC T85°C Db IP67; IECEx Ex db IIC T6 Gb; KCS Ex db IIC T6 Gb
Ordering options	Switch form, repeatability, connection, unit, range, bracket, conduit, cable gland, O-ring
Source	WISE data sheet PD09-14

P954

Range: -0.9~275 bar | Ex: db IIC T6

Pressure SwitchesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P954 Explosion Proof Pressure Switch

Brand WISE·Pressure Switches

Available part numbers (1)

P954

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
