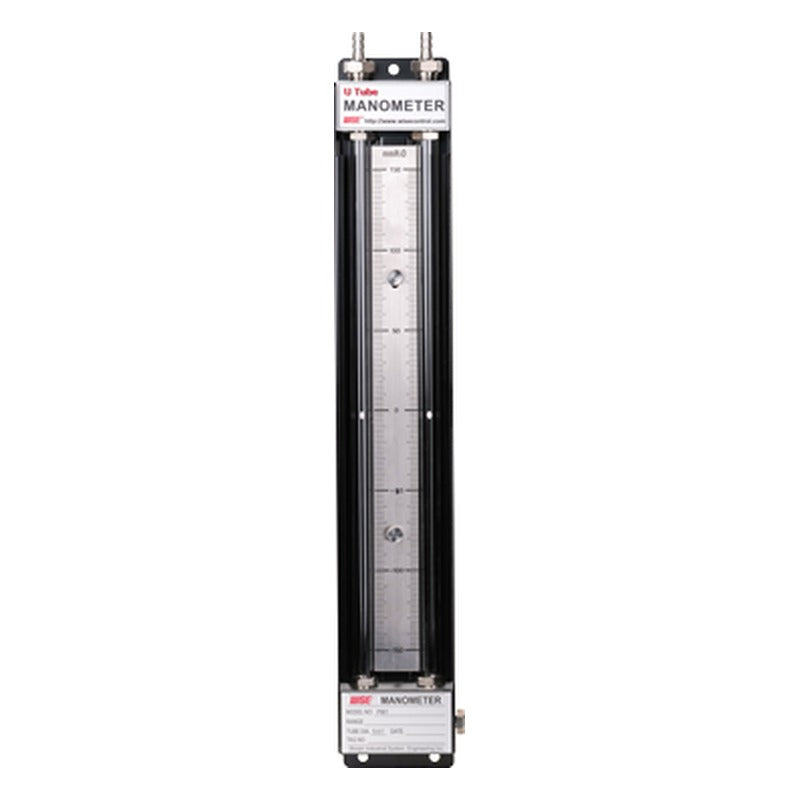

WISE P961-P965 U-Type, Inclined and Wall Type Manometer

WISE P961-P965 U-Type, Inclined and Wall Type Manometer

Liquid column manometers for calibrating pressure instruments and measuring low and vacuum pressure. U type, inclined (1:2, 1:5, 1:10) and wall type versions.

Key features

  • U type, inclined and wall type models
  • Glass tube with water or anti-freezing liquid
  • Aluminium/stainless scale with 2 mm graduation
  • Steel or 304SS base plate
  • 8 mm tube connection, surface mounting

Specifications

Scale range U type ±100~±600 mm; inclined 0~30/60/150 mm; wall 0~500/1,000/1,500 mm
Measuring liquid Water (std.), anti-freezing liquid (SG 1.120)
Tube Glass, OD 12 mm; ID 9.4 mm (P961), 5.0 mm (P962-P965)
Scale plate White aluminium with stainless steel, 2 mm graduation
Base plate SCP2 black painted; option 304SS
Pressure connection 304SS, 8 mm tube connection
Working temperature Ambient 15~25 °C; fluid max. 35 °C
Mounting Surface mounting
Ordering options Measuring liquid, base plate material, unit (mm/kPa), range, color
Source WISE data sheet PD09-09
P961 Type: U type | Range: ±100~±600 mm
P962 Type: Inclined 1:2 | Range: 0~30-150 mm
P963 Type: Inclined 1:5 | Range: 0~30-150 mm
P964 Type: Inclined 1:10 | Range: 0~30-150 mm
P965 Type: Wall type | Range: 0~500-1,500 mm
Pressure GaugesWISE
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P961-P965 U-Type, Inclined and Wall Type Manometer

Brand WISE·Pressure Gauges

Available part numbers (5)

P961, P962, P963, P964, P965

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P961Type: U type | Range: ±100~±600 mm
P962Type: Inclined 1:2 | Range: 0~30-150 mm
P963Type: Inclined 1:5 | Range: 0~30-150 mm
P964Type: Inclined 1:10 | Range: 0~30-150 mm
P965Type: Wall type | Range: 0~500-1,500 mm
