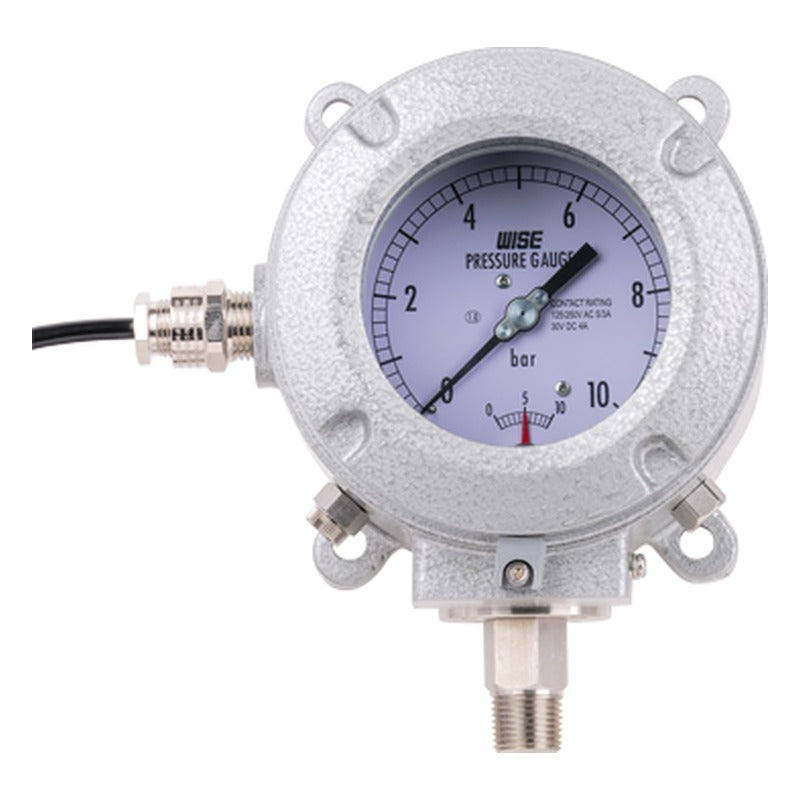

WISE P981/P982 100 mm Indicating Explosion Proof Pressure Switch

Explosion proof 100 mm indicating pressure switch combining a gauge with micro contact (P981) or electrical contact (P982) alarms. Suitable for corrosive fluids and high pressure.

Key features

Local indication with high/low alarm contacts
Micro contact (SPDT) or electrical contact (SPST)
Range up to 0~35 MPa
316SS C type bourdon tube
KCS Ex d IIC T6

Specifications

Nominal diameter	100 mm, bottom connection, surface mounting
Adjustable range	-0.1~0 to 0~2 MPa; 0~0.1 to 0~35 MPa
Accuracy	Indicator ±1.0% FS; alarm setting ±3.0% FS
Contact	P981 micro contact 1/2 SPDT; P982 electrical contact 1/2 SPST
Contact rating	Micro: AC 125 V 5 A / 250 V 3 A; electrical: AC 250 V 1.0 A
Element / connection	C type bourdon tube 316SS / 316SS
Process connection	3/8", 1/2" PT, NPT, PF
Conduit connection	1/2" NPT (F), lead wire max. 1 m
Working temperature	Ambient -20~65 °C; fluid max. 100 °C
Certificates	KCS Ex d IIC T6
Ordering options	Contact function (high/low/two alarms), connection, unit, range, dial color, cable gland
Source	WISE data sheet PD09-11

P981		Size: 100 mm \| Contact: Micro SPDT
P982		Size: 100 mm \| Contact: Electrical SPST

Pressure SwitchesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P981/P982 100 mm Indicating Explosion Proof Pressure Switch

Brand WISE·Pressure Switches

Available part numbers (2)

P981, P982
