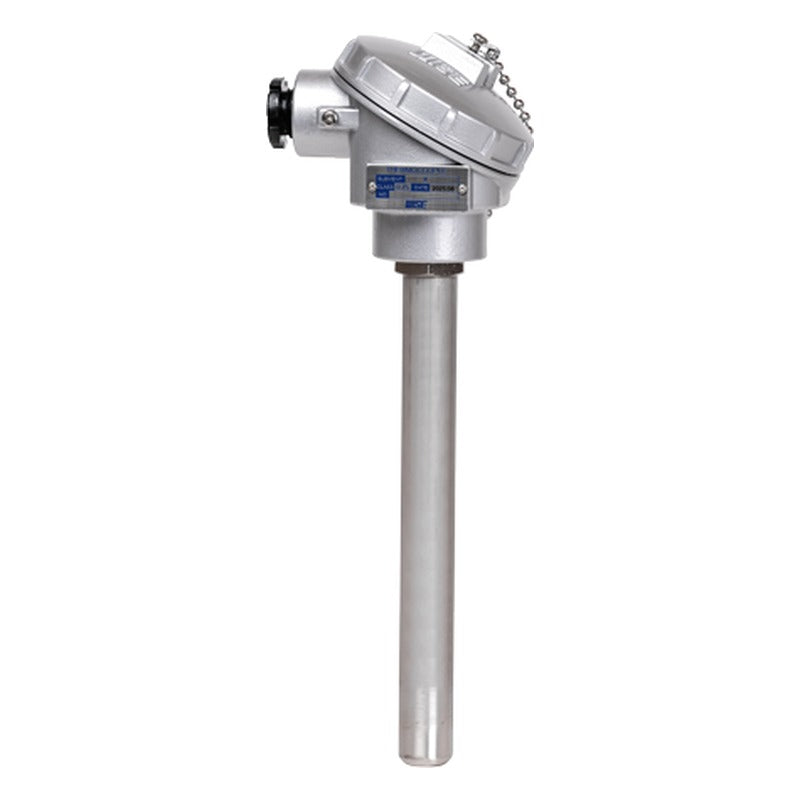

WISE R110 Metallic Protection Tube Thermocouple

WISE R110 series thermocouples combine an insulated element wire with a metallic protection tube, mounted by connector, flange or compression fitting. They give fast response with no lead-resistance error over a broad range.

Key features

Element types K, E, J, T
Single or duplex element
Tube OD 6.4 to 21.7 mm with matching element wire size
General (weatherproof) or compact head
ALDC head standard; 304SS / 316SS heads available

Specifications

Element	K, E, J, T
Tolerance	Class 2 (IEC 60584-2, JIS C1602); Standard (ASTM E230)
Tube OD / element wire	6.4/0.65 to 21.7/3.2 mm
Tube material	304SS, 316L SS, other
Head material	ALDC (std.), 304SS, 316SS (not compact)
Head type	General (weatherproof), compact (small)
Conduit connection	½" / ¾" PF, PT, NPT; M20 x 1.5P
Ordering options	Mounting type, connection type, insert length, accessories, epoxy-coated head
Source	WISE data sheet RD01-01

R111		Element: Single
R112		Element: Double (duplex)

Temperature Sensors (TC/RTD)WISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R110 Metallic Protection Tube Thermocouple

Brand WISE·Temperature Sensors (TC/RTD)

Available part numbers (2)

R111, R112

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
