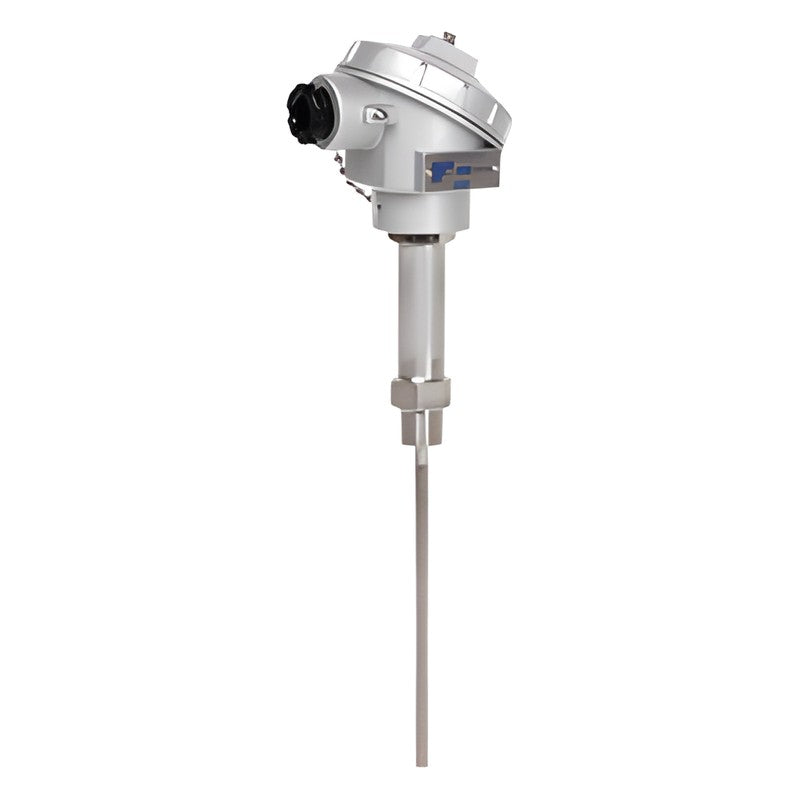

WISE R200 Heavy Duty Resistance Temperature Detector

WISE R200 heavy duty RTDs use a Pt100 film element in a 316L SS sheath for stable, repeatable measurement. Head-mounted, spring-loaded, remote and extended lead wire versions are available.

Key features

Pt100 film element, TCR 3,850 ppm/K
Class A -30 to 300 °C; Class B -50 to 500 °C
316L SS sheath, 6.4 / 8.0 mm OD
Weatherproof, explosion proof or headless lead wire versions
Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27

Specifications

Element	Pt100 Ω at 0 °C (film), single or duplex
Tolerance	Class A ±(0.15+0.002\|t\|), Class B ±(0.3+0.005\|t\|)
Temperature range	Class A -30 to 300 °C; Class B -50 to 500 °C
Sheath	316L SS, 6.4 / 8.0 mm OD
Head	ALDC; general, spring-loaded, remote, explosion proof
Vibration	20 g peak-to-peak (20-500 Hz)
Shock	50 g, 11 ms half-sine
Max. pressure at stem	Welded type up to 18 MPa (180 bar) static; spring-loaded type requires thermowell
Ordering options	Head type, lead wire length, conduit / electrical connection, mounting, insert length
Source	WISE data sheet RD02-01

R201		Element: Single
R202		Element: Double (duplex)

Temperature Sensors (TC/RTD)WISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R200 Heavy Duty Resistance Temperature Detector

Brand WISE·Temperature Sensors (TC/RTD)

Available part numbers (2)

R201, R202

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
