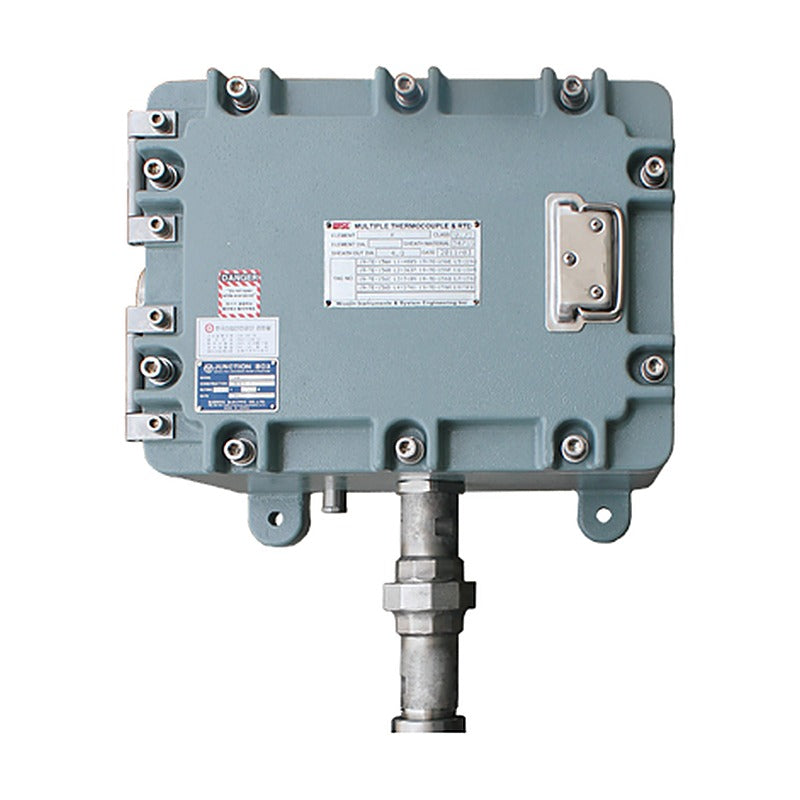

WISE R500 Multi Point Thermocouple and RTD

WISE R500 series multipoint assemblies measure distributed temperature horizontally or at several depths in reactors and vessels. Protection tube, sheath, size and number of points are built to customer specification.

Key features

Thermocouple (K, E, J, T, N) or Pt100 elements
Number of points to suit nozzle bore (code table up to 15)
With or without protection tube
General or explosion proof junction box
IP65

Specifications

Element	TC K, E, J, T, N; RTD Pt100 Ω
Tolerance	TC Class 1/2, Special/Standard; RTD Class A/B
Sheath OD	TC 1.0 to 12.7 mm; RTD 3.2 to 8.0 mm
Sheath / tube material	316SS, 316L SS, 310SS, 321SS, 347SS, 446SS, Inconel, other
Junction box	Aluminium (std.) or stainless steel
Degree of protection	IP65
Ordering options	Head and stem type, extension and sealing, points, weld pad, process connection, insert length
Source	WISE data sheet RD05-01

R511		Element: TC single
R512		Element: TC double
R521		Element: RTD single
R522		Element: RTD double

Temperature Sensors (TC/RTD)WISE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R500 Multi Point Thermocouple and RTD

Brand WISE·Temperature Sensors (TC/RTD)

Available part numbers (4)

R511, R512, R521, R522

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
