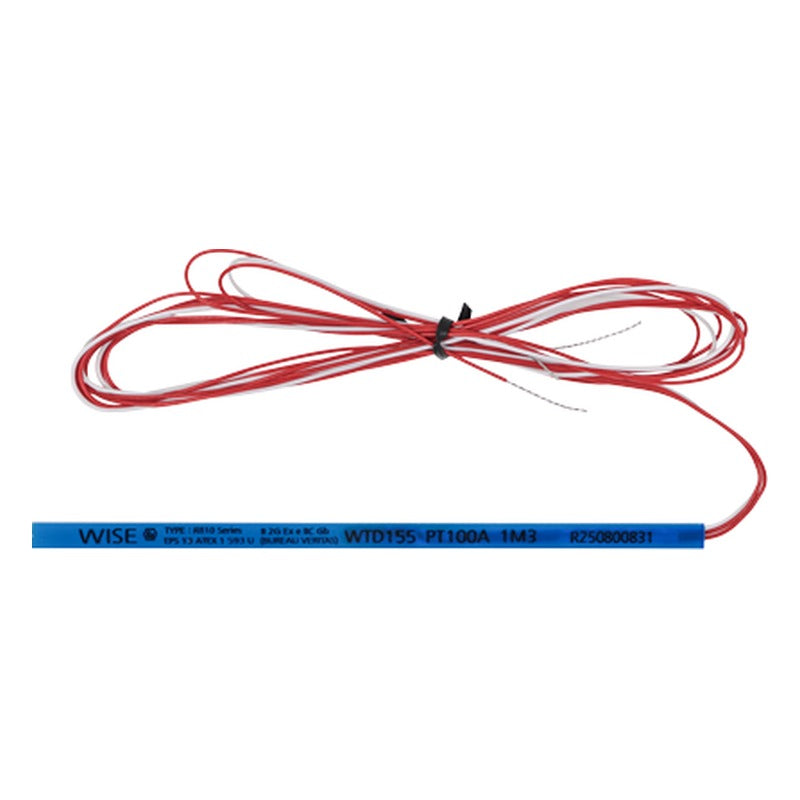

WISE R810 Increased Safety Stator Winding RTD

WISE R810 Increased Safety Stator Winding RTD

WISE R810 series stator winding RTDs fit between stator and slot to detect motor overheating. The increased safety (Ex e) design is certified for hazardous areas.

Key features

  • Pt100 element in epoxy glass body
  • Class F (155 °C) or Class H (180 °C)
  • Single or double element, 3/4/6/8 wire, shielded option
  • Ex e certified: KCs, ATEX, IECEx, CSA
  • Flexible, vibration and pressure resistant

Specifications

Element Pt100 (0.00385), Class AA / A / B to EN 60751
Body material High temperature epoxy glass
Temperature class Class F 155 °C; Class H 180 °C
Working temperature -50 to 180 °C
Body 2.0 mm thick; 6 x 155 mm (single), 11 x 155 mm (double)
Lead wires 3 or 4 wire, copper AWG 24, FEP or polyimide
Certificates KCs Ex e IIC Gb; ATEX II 2G Ex e IIC Gb; IECEx Ex e IIC Gb; CSA Ex eb IIC Gb
Temperature class (Tamb) T6 -40~80 °C; T5 -40~95 °C; T4 -40~130 °C; T3 -40~180 °C
Ordering options Explosion proof type, body length, lead wire length / colour, twisted leads
Source WISE data sheet RD08-01
R811 Element: Single | Wires: 3
R812 Element: Double | Wires: 6
R813 Element: Single | Wires: 3 | Shield: Yes
R814 Element: Double | Wires: 6 | Shield: Yes
R815 Element: Single | Wires: 4
R816 Element: Double | Wires: 8
R817 Element: Single | Wires: 4 | Shield: Yes
R818 Element: Double | Wires: 8 | Shield: Yes
Temperature Sensors (TC/RTD)WISE
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
