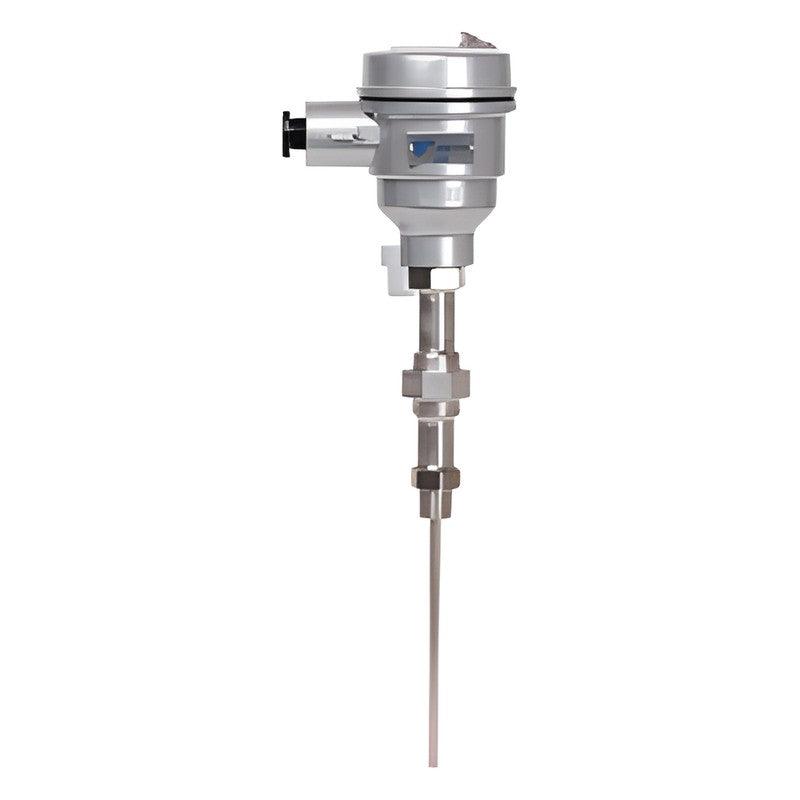

WISE R911 Head Mounting Multi Input Temperature Transmitter

WISE R911 is an explosion proof temperature sensor assembly with the T900 head-mount 2-wire transmitter, converting RTD, thermocouple or mV/V/mA input to 4-20 mA. The T900 is factory calibrated with field zero and span adjustment.

Key features

T900 universal input: RTD, TC, mV, V, mA
2-wire 4-20 mA loop powered output
Accuracy ±0.2 % FSO
Explosion proof head, KCs Ex d IIC T6
Programmable range and burnout setting

Specifications

Output	4-20 mA, 2-wire loop powered
Input	Pt100, JPt100, TC (K, J, T, E, R, S, B, N), mV/V/mA
Accuracy	±0.2 % FSO
Excitation voltage	18-30 V DC
Load resistance	Max. 600 Ω at 24 V
Burnout	High (20.5 mA) or low (3.9 mA)
Ambient	-40 to 65 °C, 5-95 % RH
Certificates	KCs Ex d IIC T6
Ordering options	Head and tip type, element, sheath, conduit, mounting, connection, insert length
Source	WISE data sheet RD09-01

R911		Type: Sensor + T900 \| Head: Ex d
T900		Type: Head-mount transmitter \| 4-20 mA

Temperature TransmittersWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R911 Head Mounting Multi Input Temperature Transmitter

Brand WISE·Temperature Transmitters

Available part numbers (2)

R911, T900

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
