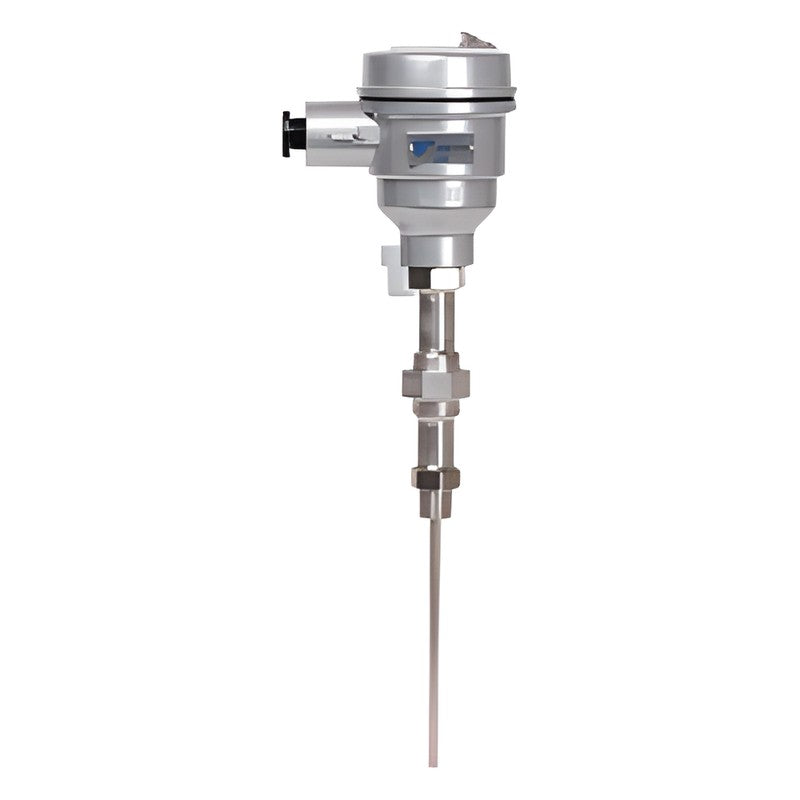

WISE R912 Head Mounting RTD Temperature Transmitter

WISE R912 is an explosion proof Pt100 sensor assembly with the T990 fixed-range 2-wire transmitter, giving a 4-20 mA signal for long cable runs and noisy environments.

Key features

T990 RTD (Pt100) input, fixed range
Measuring range within -50 to 400 °C
2-wire 4-20 mA output, accuracy ±0.2 % FS
Explosion proof head, KCs Ex d IIC T6
Miniature, low-cost design

Specifications

Output	4-20 mA, 2-wire
Input	Pt100 Ω at 0 °C
Measuring range	-50 to 400 °C (fixed range, e.g. 0-50 °C)
Accuracy	±0.2 % of full scale
Excitation voltage	18-30 V
Load resistance	Max. 500 Ω at 24 V
Ambient	-40 to 65 °C, 5-95 % RH
Certificates	KCs Ex d IIC T6; KCs Ex tD A21 T85 °C
Ordering options	Head and tip type, sheath material / OD, conduit, mounting, connection, burnout
Source	WISE data sheet RD09-02

R912

Type: Sensor + T990 | Head: Ex d

Temperature TransmittersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R912 Head Mounting RTD Temperature Transmitter

Brand WISE·Temperature Transmitters

Available part numbers (1)

R912

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
