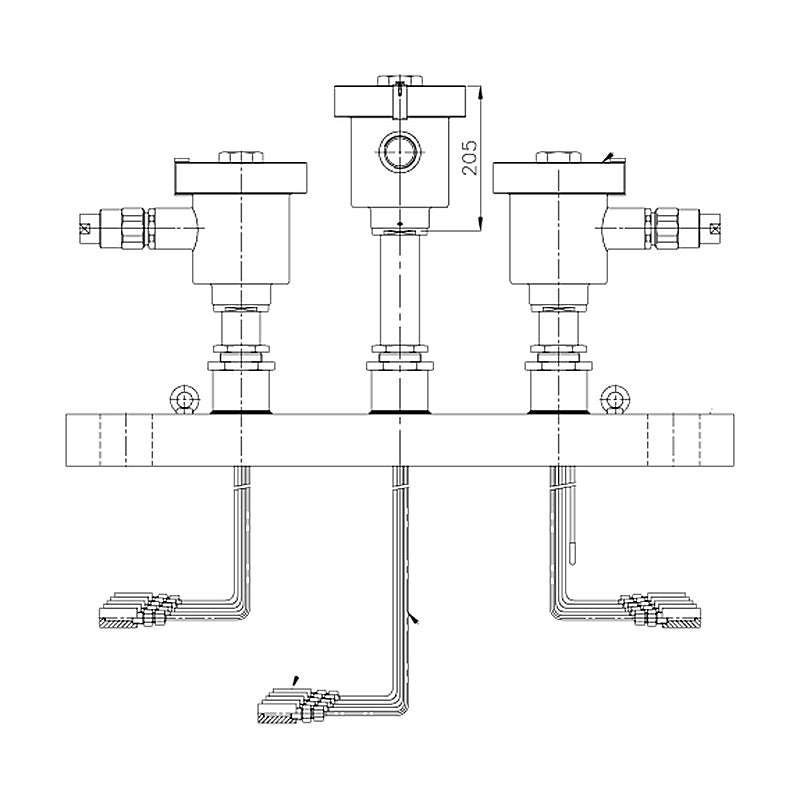

WISE R930 Explosion Proof Multi Point Thermocouple and RTD

WISE R930 (RC series) explosion proof multipoint sensors measure distributed temperature in reactors and vessels, horizontally or at several depths. One head holds up to 5 elements; materials and points are made to order.

Key features

Thermocouple (K, E, J, T, N) or Pt100
Up to 5 elements per head
Stainless steel or aluminium explosion proof heads
KCs Ex d IIC T6 IP67
With or without protection tube

Specifications

Element	TC K, E, J, T, N; RTD Pt100 Ω
Tolerance	TC Class 1/2, Special/Standard; RTD Class A/B
Sheath OD	3.2, 4.8, 6.4, 8.0 mm
Sheath / tube material	316SS, 316L SS, 310SS, 321SS, 347SS, 446SS, Inconel, other
Head material	Stainless steel, aluminium
Certificates	KCs Ex d IIC T6 IP67
Degree of protection	IP67
Ordering options	Head and tip type, extension and sealing, number of points, connection, insert length
Source	WISE data sheet RD09-04

R931		Element: TC single
R932		Element: TC double
R933		Element: RTD single
R934		Element: RTD double

Temperature Sensors (TC/RTD)WISE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R930 Explosion Proof Multi Point Thermocouple and RTD

Brand WISE·Temperature Sensors (TC/RTD)

Available part numbers (4)

R931, R932, R933, R934

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
