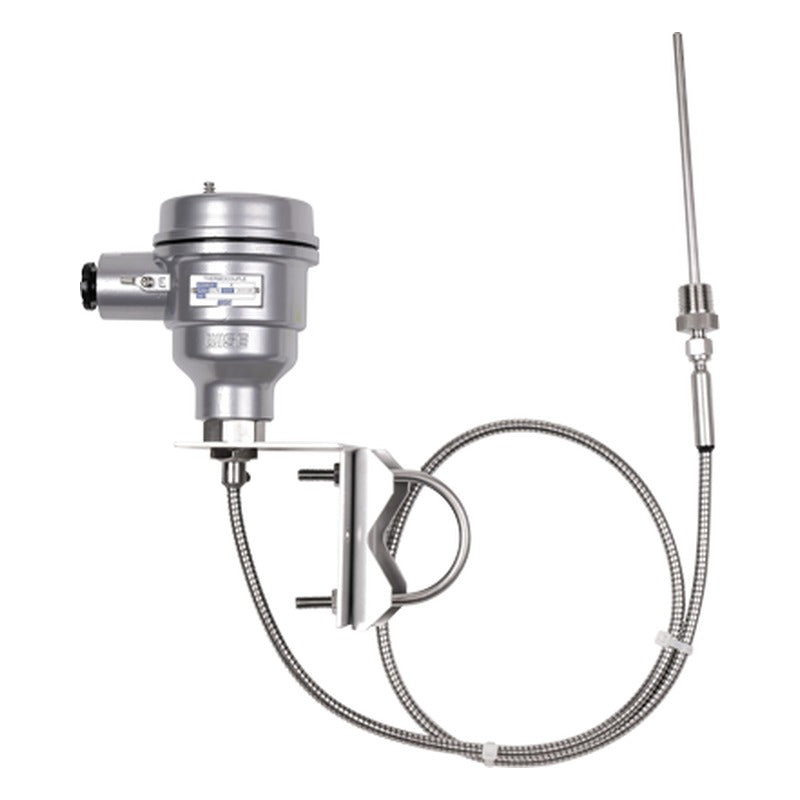

WISE R94x Explosion Proof Remote Mounting TC and RTD

WISE R94x Explosion Proof Remote Mounting TC and RTD

WISE R94x series explosion proof sensors have the sensing unit connected by lead wire to a remotely mounted flameproof enclosure. They are built to customer specification, including multipoint versions.

Key features

  • Thermocouple K, E, J, T, N, R, S, B or Pt100
  • Remote mounted ALDC or 316SS head
  • Single, duplex and multipoint versions
  • KCs Ex db eb IIC T6 Gb; Ex tD versions
  • Optional integral transmitter

Specifications

Element TC K, E, J, T, N, R, S, B; RTD Pt100 Ω
Tolerance TC Class 1/2, Special/Standard; RTD Class A/B
Sheath OD TC 1.0 to 12.7 mm; RTD 3.2 to 8.0 mm
Certificates KCs Ex db eb IIC T6 Gb; KCs Ex tD A21 T85 °C (except multipoint)
Degree of protection IP66
Ambient temperature -40 to +65 °C (silicone); -20 to +65 °C (Viton, NBR)
Ordering options Head and tip type, sheath material, conduit, lead wire length, mounting, transmitter
Source WISE data sheet RS09-11
R94A Element: Single | Ex: db eb
R94B Element: Double | Ex: db eb
R94C Single | Multipoint | Ex: db eb
R94D Double | Multipoint | Ex: db eb
R94E Element: Single | Ex: tD
R94F Element: Double | Ex: tD
Temperature Sensors (TC/RTD)WISE
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE R94x Explosion Proof Remote Mounting TC and RTD

Brand WISE·Temperature Sensors (TC/RTD)

Available part numbers (6)

R94A, R94B, R94C, R94D, R94E, R94F

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R94AElement: Single | Ex: db eb
R94BElement: Double | Ex: db eb
R94CSingle | Multipoint | Ex: db eb
R94DDouble | Multipoint | Ex: db eb
R94EElement: Single | Ex: tD
R94FElement: Double | Ex: tD
