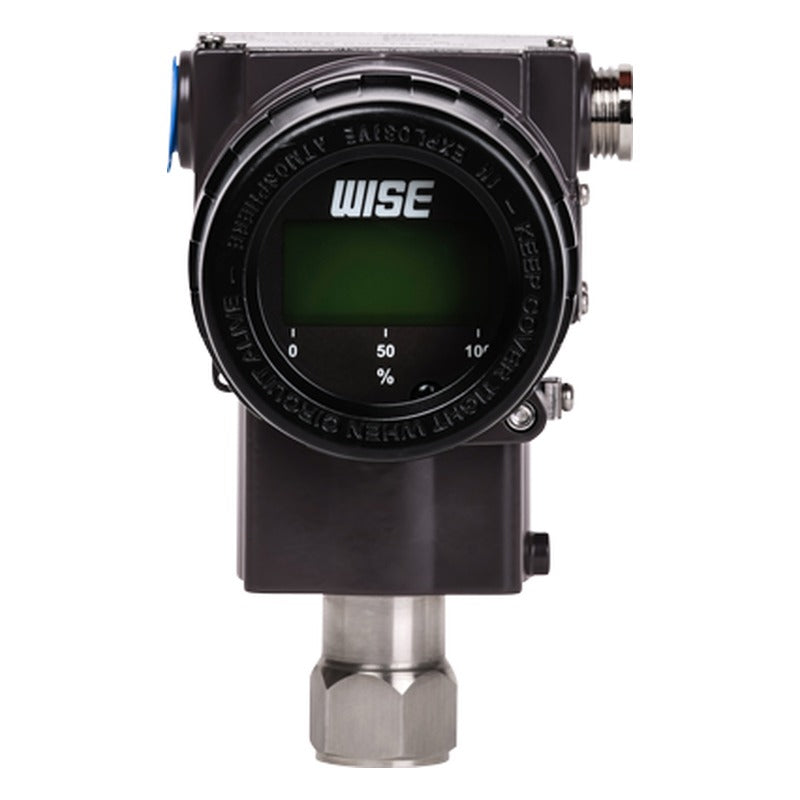

WISE SMT2003 Absolute Pressure Transmitter, HART

High performance absolute pressure transmitter with 4~20 mA HART output for liquid, gas and steam pressure, level and density. Up to 100:1 turndown and ±0.05% accuracy.

Key features

±0.05% or ±0.075% of calibrated span
Turndown up to 100:1
±0.1% / 3 years stability, 10 years maintenance-free
Optional LCD with local set button
ATEX, IECEx, KCs and FM approvals; marine options

Specifications

Output	4~20 mA DC with HART, 2-wire
Range limits	20~400 mbar, 25~2500 mbar, 0.3~30 bar (absolute)
Accuracy	±0.05% (D, E sensor) or ±0.075% of calibrated span
Power supply	12~42 V DC
Isolating diaphragm	316L SS, Hastelloy C, 316L SS gold plated
Fill fluid	Silicone oil, fluorinated oil
Process connection	1/2" NPT (F) std.; male with union options
Housing / conduit	Aluminium or 316SS / 1/2" NPT (F), M20x1.5
Degree of protection	IP66/IP67
Certificates	ATEX/IECEx Ex db, Ex ia; KCs Ex d, Ex ia; FM Approvals
Ordering options	Span, accuracy, LCD, wetted materials, fill, Ex type, housing, bracket, connection
Source	WISE data sheet SD02-03

SMT2003

Span: 20 mbar~30 bar abs | Out: HART

Pressure TransmittersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE SMT2003 Absolute Pressure Transmitter, HART

Brand WISE·Pressure Transmitters

Available part numbers (1)

SMT2003

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
