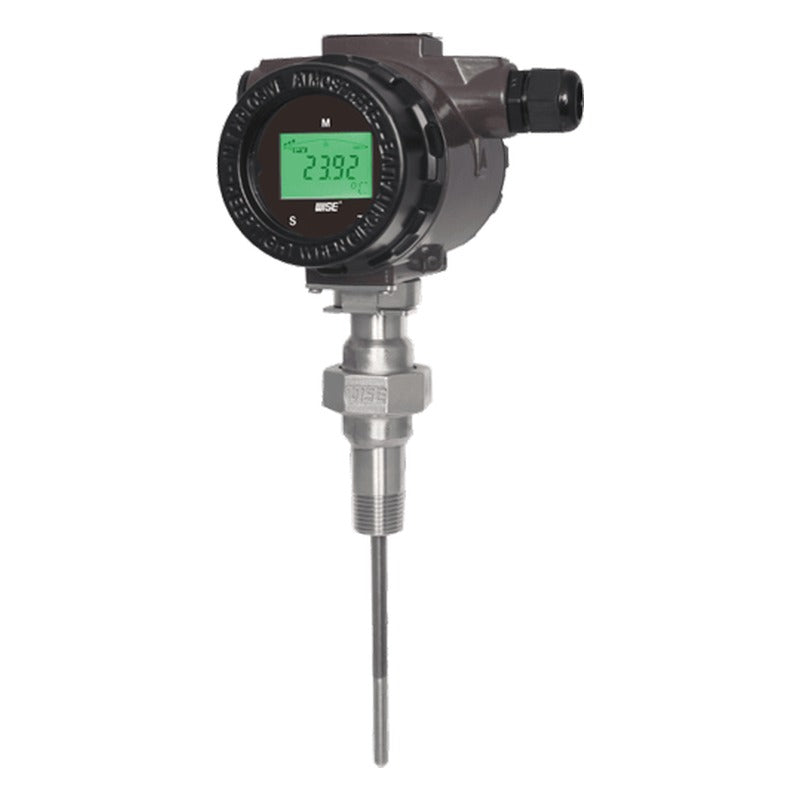

WISE SMT3100 Smart Temperature Transmitter, Top Entry

High performance HART smart temperature transmitter (top installation type) that accepts thermocouple or RTD inputs and converts them to a 4-20 mA signal, with local display.

Key features

Top installation type of the SMT3000 series
4-20 mA output with HART protocol, local LCD display
Thermocouple K, J, T, N, E, B, R, S or Pt100 input
Aluminium or 316SS flameproof housing
Direct, spring-loaded or remote type with flange/thread/clamp connections

Specifications

Input	TC K, J, T, N, E, B, R, S; RTD Pt100
Output	4-20 mA with HART
Power supply	10-42 VDC
Display	PV (°C, °F, °R, K), current, percent
Housing	Aluminium or 316SS; M20 x 1.5P or ½" NPT conduit
Sheath	316L SS (RTD); TC: 316L, Inconel 600, 310/446/347/321SS
Sheath diameter	3.2, 4.8, 6.4, 8.0 mm
Degree of protection	IP66 / IP67
Ambient temperature	-40 to 65 °C (silicone seal)
Certificates (option)	KCs Ex d IIC T6 Gb; IECEx Ex d IIC T6 Gb; ATEX II 2G Ex db IIC T6 Gb
Ordering options	Type/housing, input, sheath, conduit, mounting, insert length, transmitter, range, display
Source	WISE data sheet SD03-01

SMT3100

Installation: Top | Output: 4-20 mA HART

Temperature TransmittersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE SMT3100 Smart Temperature Transmitter, Top Entry

Brand WISE·Temperature Transmitters

Available part numbers (1)

SMT3100

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
