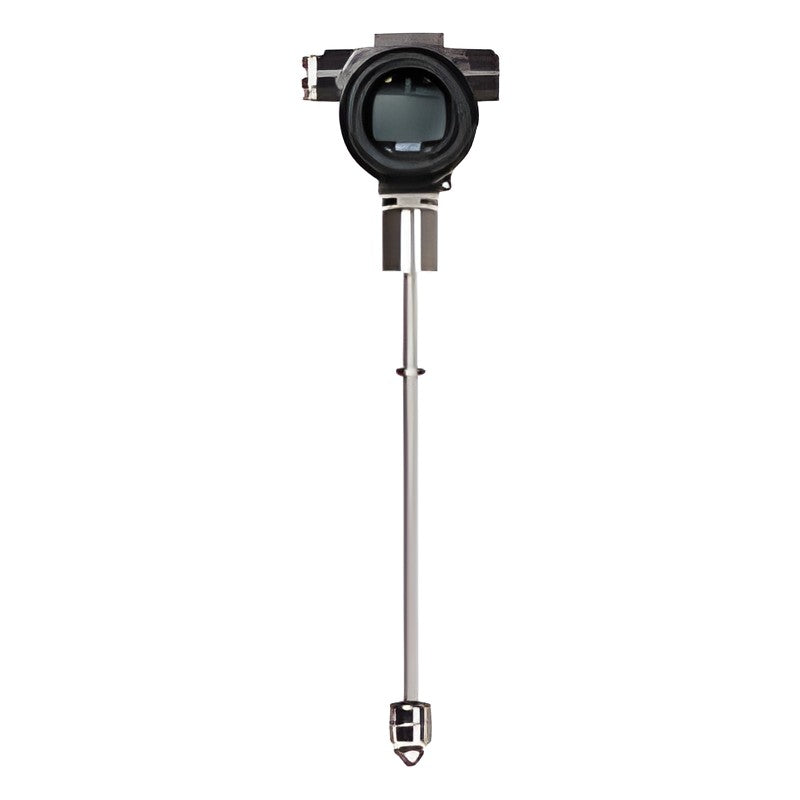

WISE SMT4000 Series Magnetic Float Level Transmitter

WISE SMT4000 Series Magnetic Float Level Transmitter

The WISE SMT4000 series magnetic float level transmitter measures vessel level continuously: a float sized to the liquid's specific gravity actuates a reed chain, converted to a 2-wire 4-20 mA output.

Key features

  • Continuous level via float and reed switch chain
  • 2-wire 4-20 mA, NAMUR NE43
  • General (80 C) and high-temperature (150 C, cooling fin) versions
  • Non-display or 5-digit display
  • Weatherproof IP66 or Ex-proof KCs Ex d IIC T6

Specifications

Output DC 4-20 mA 2-wire (3.6-21 mA NAMUR NE43)
Power supply DC 24 V (17-36 V)
Max. temperature SMT41xx 80 C; SMT42xx 150 C with cooling fin
Max. pressure 20 kgf/cm2
Resolution 5 mm (1" float); 10 mm (2"-4")
Specific gravity 0.6-1.4 depending on float size
Max. length 1,500 mm (1"), 3,000 mm (2"), 5,000 mm (3"/4")
Materials Housing ADC12; float 316L SS; wetted 304/304L/316/316L SS
Enclosure Weatherproof IP66; Ex-proof KCs, Ex d IIC T6, IP66
Process connection ANSI 1"-4" 150 Lb, JIS/KS 10K 25A-100A, 2" PT, or level gauge mount
Ordering options Enclosure, material, process connection/float, conduit, measuring range 100-5,000 mm
Source WISE data sheet SD04-01
SMT4110 Version: General | Display: None | Max. temp.: 80 C
SMT4120 Version: General | Display: 5-digit | Max. temp.: 80 C
SMT4210 Version: High temp. | Display: None | Max. temp.: 150 C
SMT4220 Version: High temp. | Display: 5-digit | Max. temp.: 150 C
Level TransmittersWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE SMT4000 Series Magnetic Float Level Transmitter

Brand WISE·Level Transmitters

Available part numbers (4)

SMT4110, SMT4120, SMT4210, SMT4220
