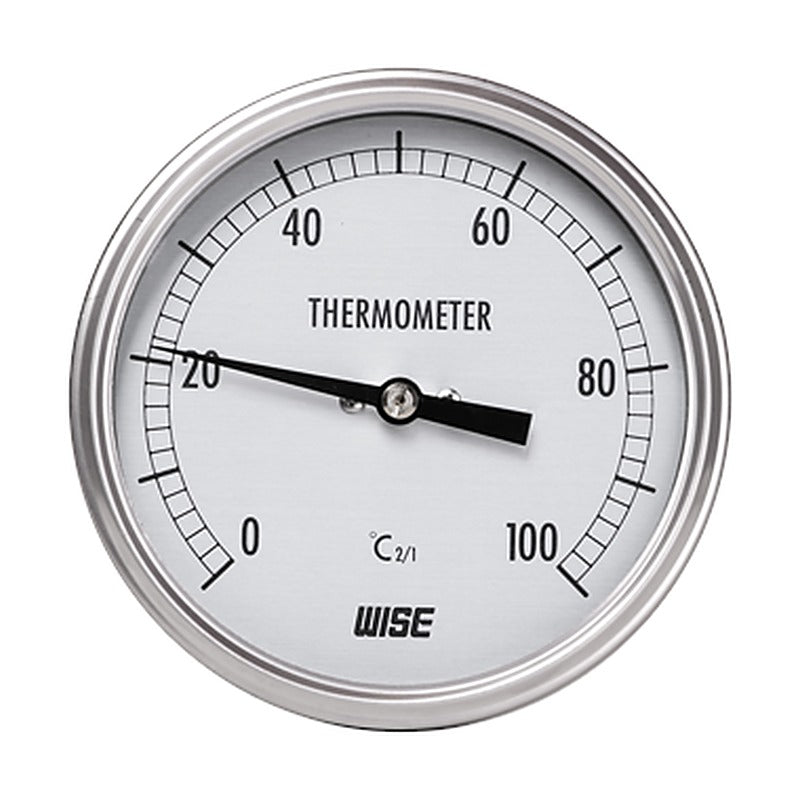

WISE T111 Industrial Bimetal Thermometer

Coiled bimetal thermometer for measuring the temperature of gases and liquids, built for corrosive atmospheres and demanding climatic conditions.

Key features

Center back connection with external zero adjustment
Dial sizes 75 to 150 mm
304SS case and cover for corrosive atmospheres
Stem 6.0 to 10.0 mm in 304SS, 316SS or 316L SS
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	75, 100, 125, 150 mm
Stem location	Center back, direct
Temperature element	Coiled bimetal
Scale ranges	-50 to 600 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	304SS / 304SS
Stem	6.0, 6.4, 8.0, 10.0 mm; 304SS/316SS/316L SS
Insertion length	Up to 2,000 mm
Process connection	¼", ⅜", ½", ¾" PT, NPT, PF
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD01-02

T111

Dial: 75, 100, 125, 150 mm | Element: Bimetal | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T111 Industrial Bimetal Thermometer

Brand WISE·Thermometers

Available part numbers (1)

T111

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
