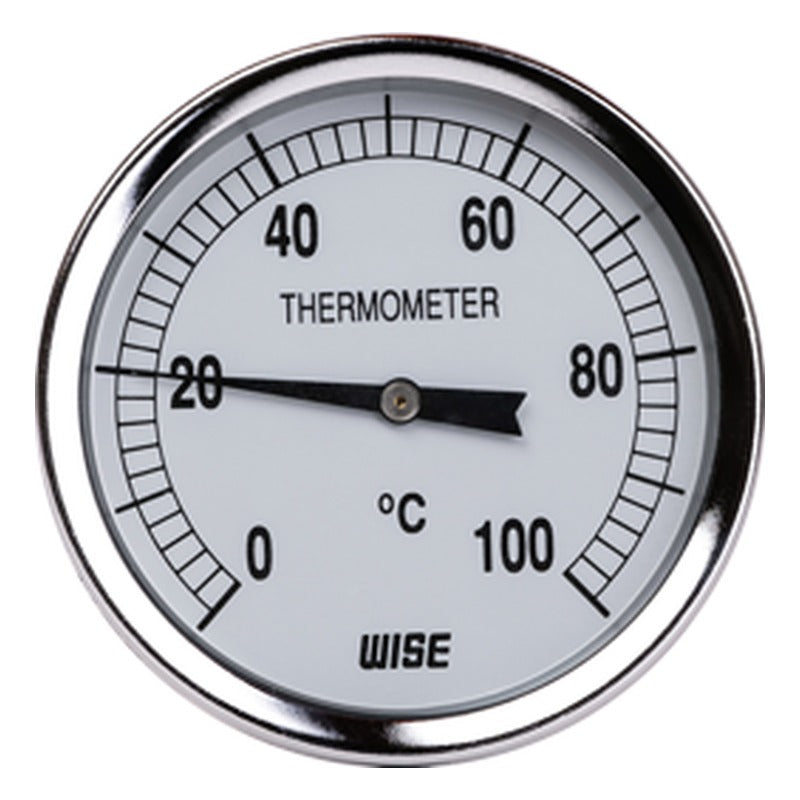

WISE T114 General Service Bimetal Thermometer

Coiled bimetal thermometer for measuring the temperature of gases and liquids, built for corrosive atmospheres and demanding climatic conditions.

Key features

Economical general service bimetal thermometer
Nickel plated steel case and cover
6.4 mm stem in 304SS, 316SS or 316L SS
Insertion length up to 400 mm
Threaded ¼" to ½" PT, NPT or PF connection

Specifications

Nominal diameter	75, 100 mm
Stem location	Center back, direct
Temperature element	Coiled bimetal
Scale ranges	0 to 350 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	Nickel plated steel
Window	Glass
Stem	6.4 mm; 304SS/316SS/316L SS
Insertion length	Up to 400 mm
Process connection	¼", ⅜", ½" PT, NPT, PF
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD01-04

T114

Dial: 75, 100 mm | Element: Bimetal | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T114 General Service Bimetal Thermometer

Brand WISE·Thermometers

Available part numbers (1)

T114

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
