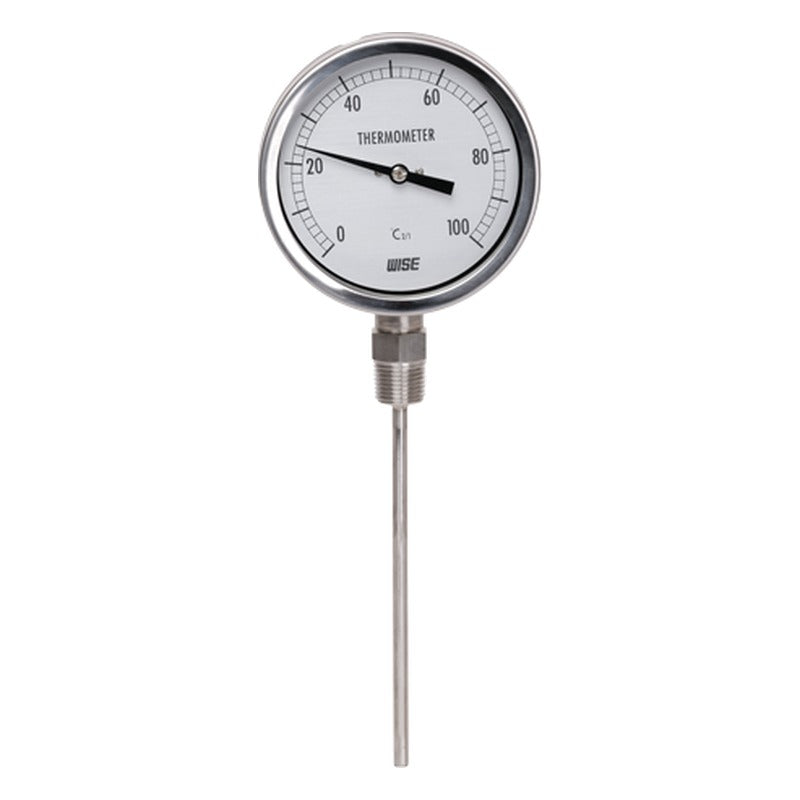

WISE T120 Process Industry Bimetal Thermometer

Coiled bimetal thermometer for measuring the temperature of gases and liquids, built for corrosive atmospheres and demanding climatic conditions.

Key features

Bottom (lower) connection for direct mounting
304SS case and cover, IP65 on 100 mm dial
Stem 6.0 to 10.0 mm, up to 2,000 mm insertion
Range codes from -50 to 600 °C
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	75, 100 mm
Stem location	Bottom connection, direct
Temperature element	Coiled bimetal
Scale ranges	-50 to 600 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	304SS / 304SS
Stem	6.0, 6.4, 8.0, 10.0 mm; 304SS/316SS/316L SS
Process connection	¼", ⅜", ½", ¾" PT, NPT, PF
Degree of protection	IP65 (100 mm)
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD01-05

T120

Dial: 75, 100 mm | Element: Bimetal | Accuracy: ±2.0 % FS
