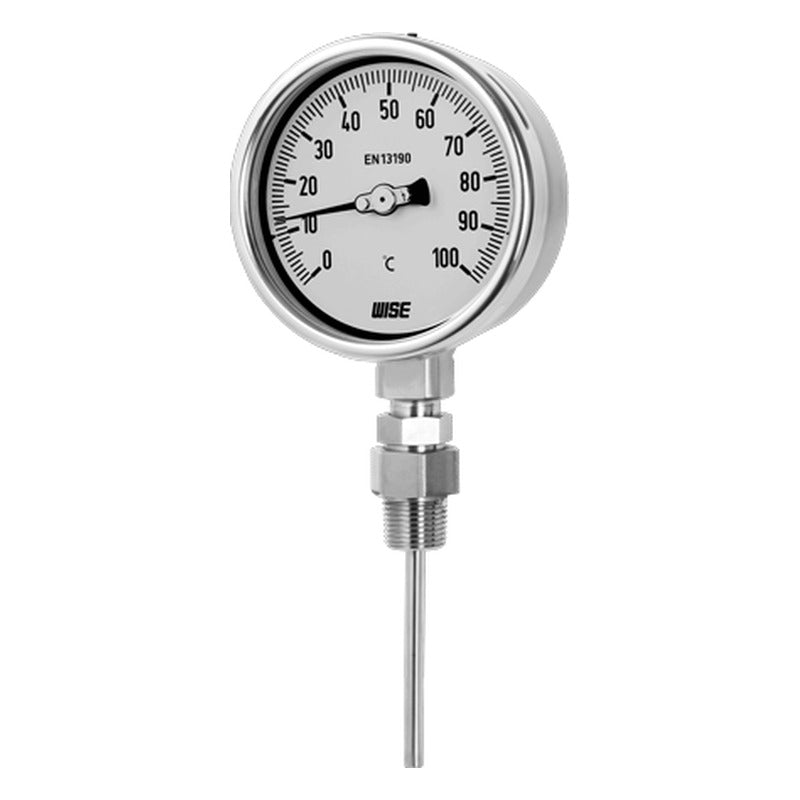

WISE T150 Euro Gauge Bimetal Thermometer

Coiled bimetal thermometer for measuring the temperature of gases and liquids, built for corrosive atmospheres and demanding climatic conditions.

Key features

EN13190 Euro gauge design with bayonet 304SS case
Center back, bottom or adjustable-stem versions
IP67 protection, micro adjustable pointer
G½B and G¾B connections in addition to PT/NPT/PF
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	80, 100, 160 mm
Stem location	Center back, bottom or adjustable stem
Scale ranges	-70 to 600 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	304SS, bayonet type
Stem	6.0, 6.4, 8.0, 10.0 mm; 304SS/316SS/316L SS
Process connection	¼"-¾" PT, NPT, PF; G½B, G¾B
Degree of protection	IP67
Ambient temperature	-20 to 60 °C
Standard	EN13190
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD01-08

T150

Dial: 80, 100, 160 mm | Element: Bimetal | Accuracy: ±2.0 % FS
