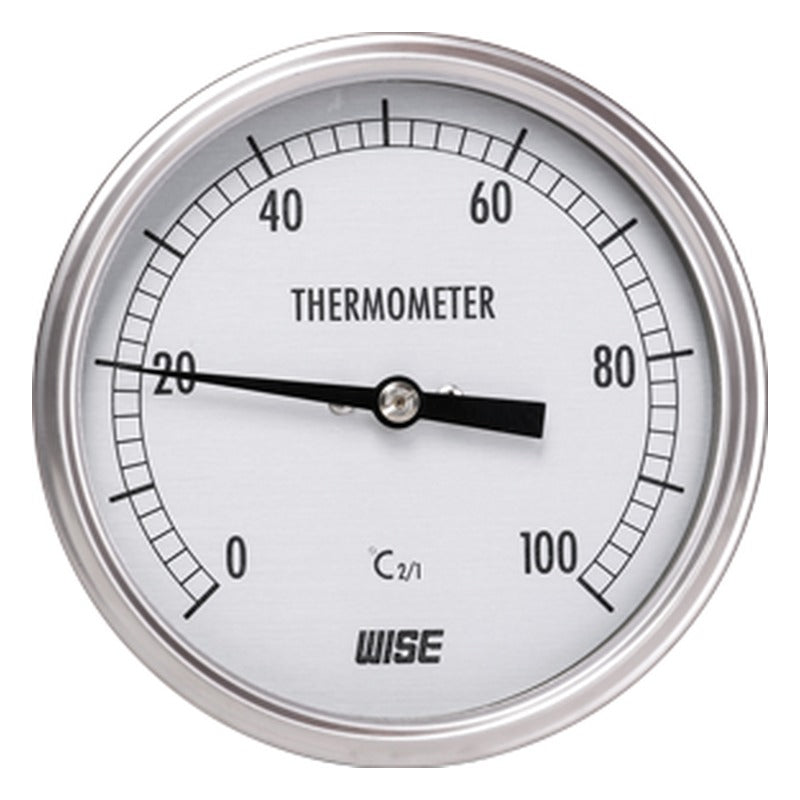

WISE T191 Sealed Case Bimetal Thermometer with Adjustable Stem

Hermetically sealed bimetal thermometer with adjustable stem; the sealed case keeps moisture out and minimises icing or fogging inside the case.

Key features

Every-angle adjustable stem for best readability
Hermetically sealed 316L SS case prevents icing and fogging
Safety glass window, IP66/IP67
Special range 0 to 600 °C available
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	75, 100, 125, 150 mm
Stem location	Center back, adjustable stem
Temperature element	Coiled bimetal
Scale ranges	-50 to 600 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	Hermetically sealed 316L SS
Stem	6.0, 6.4, 8.0, 10.0 mm; 304SS/316SS/316L SS
Process connection	¼", ⅜", ½", ¾" PT, NPT, PF
Degree of protection	IP67 (125 mm), IP66 (100 mm)
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD01-10

T191

Dial: 75, 100, 125, 150 mm | Element: Bimetal | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T191 Sealed Case Bimetal Thermometer with Adjustable Stem

Brand WISE·Thermometers

Available part numbers (1)

T191

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
