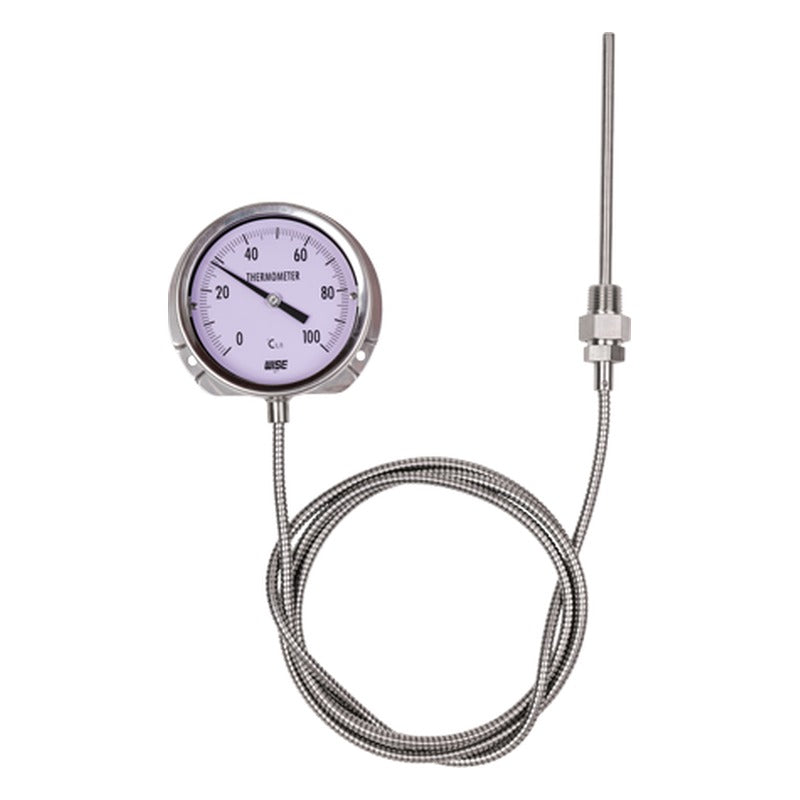

WISE T210 Remote Reading Thermometer

Gas-filled (SAMA class IIIB) thermometer for corrosive and non-corrosive fluids in all industries; linear dial and temperature-compensated line give accurate readings at varying ambient conditions.

Key features

Remote reading via 316SS capillary with 304SS armored tube
Wide gas system range -200 to 800 °C
EN13190 design, accuracy comparable to Class 1/Class 2
304SS case with IP67 (100 mm)
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100, 150 mm
Stem location / mounting	Bottom surface or lower back flush mounting
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-200 to 800 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Capillary	1.6/0.2 mm 316SS; armored tube 304SS
Degree of protection	IP67 (100 mm)
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, capillary length, thermowell
Source	WISE data sheet TD02-01

T210

Dial: 100, 150 mm | Type: Remote reading | Accuracy: ±2.0 % FS
