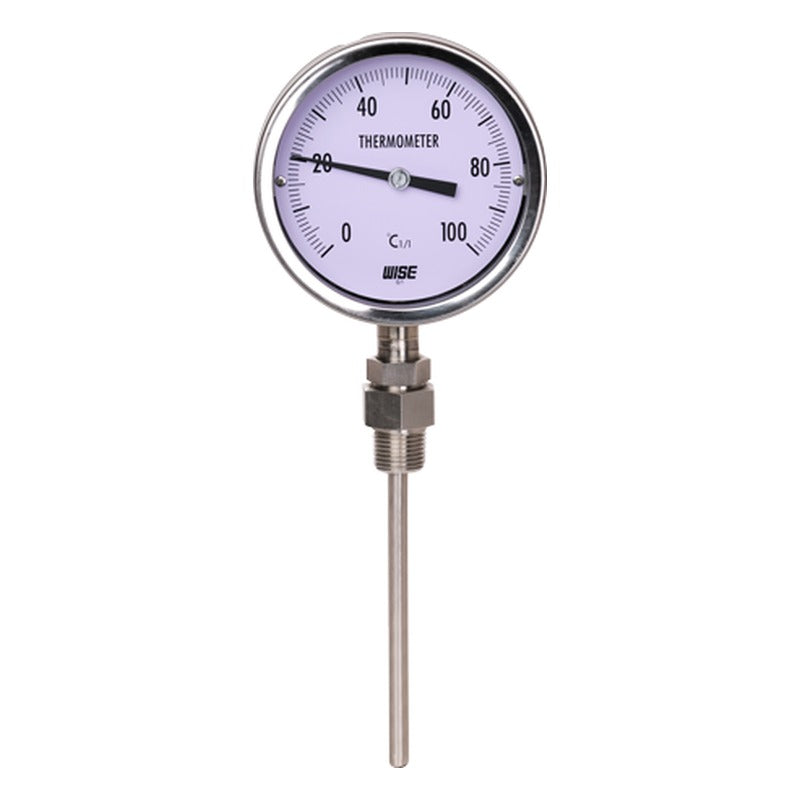

WISE T220 Direct Reading Thermometer

Gas-filled (SAMA class IIIB) thermometer for corrosive and non-corrosive fluids in all industries; linear dial and temperature-compensated line give accurate readings at varying ambient conditions.

Key features

Direct-mount gas-filled thermometer
Bottom or lower back stem connection
304SS case and cover, tempered safety glass
Range codes from -200 to 700 °C
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100, 150 mm
Stem location / mounting	Bottom or lower back, direct
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-200 to 700 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	304SS / 304SS
Window	Tempered safety glass
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD02-05

T220

Dial: 100, 150 mm | Type: Direct reading | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T220 Direct Reading Thermometer

Brand WISE·Thermometers

Available part numbers (1)

T220

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
