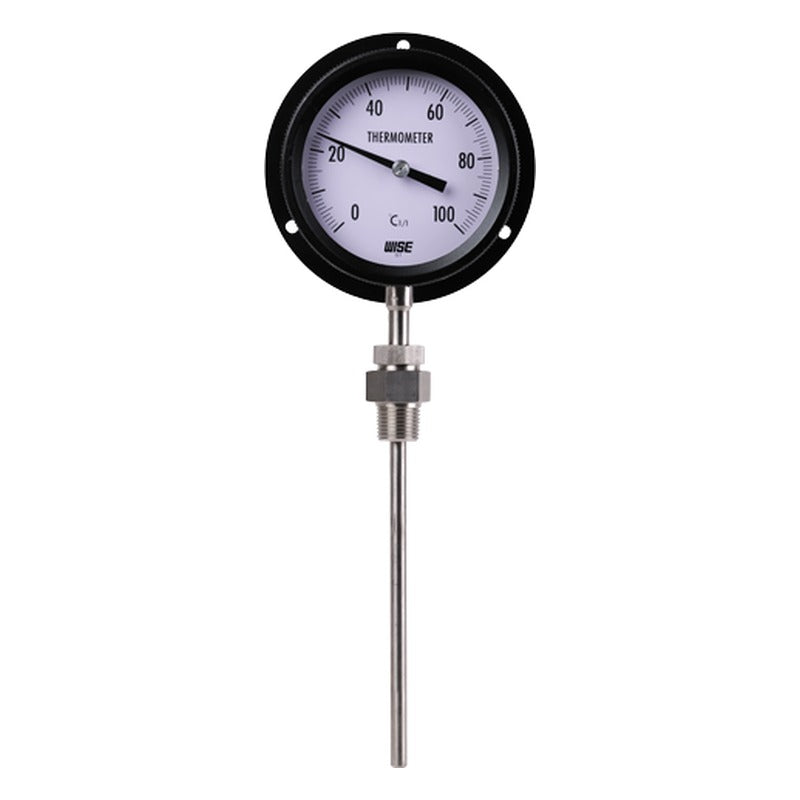

WISE T222 Direct Reading Thermometer, Aluminium Case

Gas-filled (SAMA class IIIB) thermometer for corrosive and non-corrosive fluids in all industries; linear dial and temperature-compensated line give accurate readings at varying ambient conditions.

Key features

Black finished aluminium case and cover
Bottom direct, surface or lower back mounting
Gas-filled system, -200 to 700 °C ranges
316SS or 316L SS stem 8.0 to 12.0 mm
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100, 150 mm
Stem location / mounting	Bottom direct/surface or lower back direct
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-200 to 700 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	Black finished aluminium
Window	Tempered safety glass
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD02-06

T222

Dial: 100, 150 mm | Type: Direct reading | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T222 Direct Reading Thermometer, Aluminium Case

Brand WISE·Thermometers

Available part numbers (1)

T222

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
