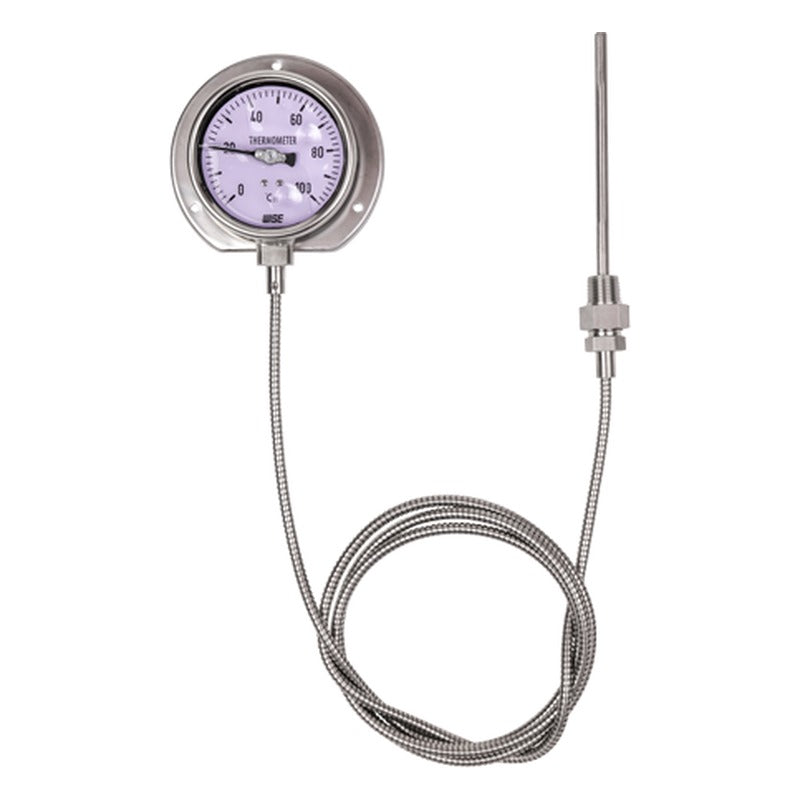

WISE T239 Euro Gauge Liquid Filled Remote Thermometer

Liquid-filled case gas-actuated thermometer (SAMA class IIIB) for corrosive and non-corrosive fluids; glycerin or silicone filling damps vibration while the compensated system keeps readings accurate.

Key features

Euro gauge bayonet case with liquid filling
Glycerin or silicone filling damps vibration
Remote reading through armored capillary
Dial sizes 100 and 160 mm
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100, 160 mm
Stem location / mounting	Bottom surface or lower back flush mounting
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-200 to 700 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Capillary	1.6/0.2 mm 316SS; armored tube 304SS
Filling liquid	Glycerin or silicone
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb; ATEX II 2D Ex h IIIC T85°C…T450°C Db
Ordering options	Mounting, stem material/diameter, connection type, range, capillary length, thermowell
Source	WISE data sheet TD02-09

T239

Dial: 100, 160 mm | Type: Remote reading | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T239 Euro Gauge Liquid Filled Remote Thermometer

Brand WISE·Thermometers

Available part numbers (1)

T239

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
