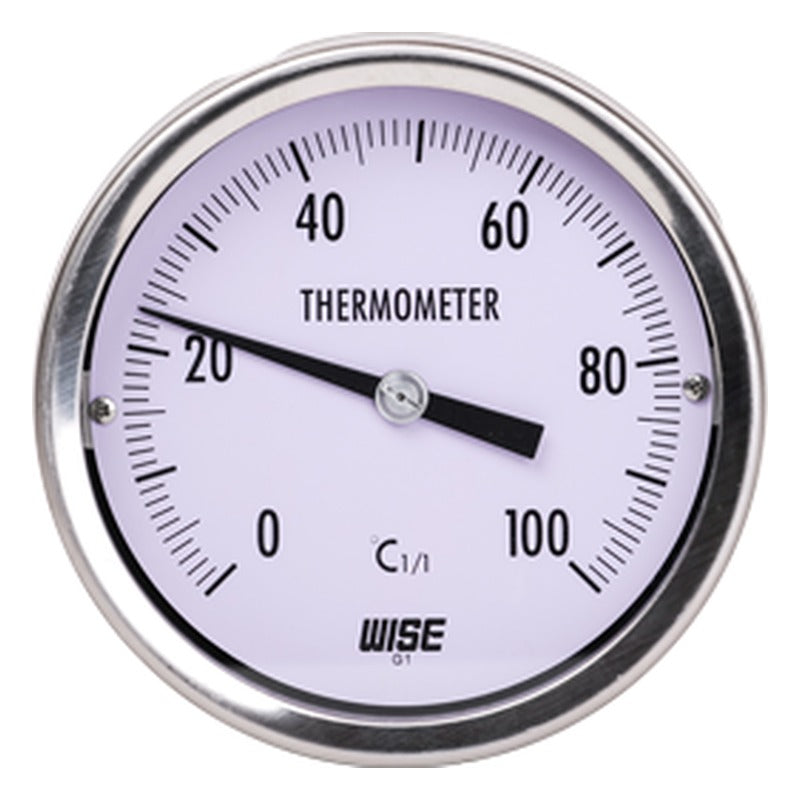

WISE T290 Direct Reading Thermometer with Adjustable Stem

Gas-filled (SAMA class IIIB) thermometer for corrosive and non-corrosive fluids in all industries; linear dial and temperature-compensated line give accurate readings at varying ambient conditions.

Key features

Case adjustable 90° on the stem for best reading angle
Movable thread stem connection
Gas system range -200 to 800 °C
EN13190 design, accuracy comparable to Class 1/Class 2
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100, 150 mm
Stem location / mounting	Lower back with adjustable stem
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-200 to 800 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	304SS, adjustable 90° on stem
Window	Tempered safety glass
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Ordering options	Mounting, stem material/diameter, connection type, range, insertion length, thermowell
Source	WISE data sheet TD02-13

T290

Dial: 100, 150 mm | Type: Direct reading | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T290 Direct Reading Thermometer with Adjustable Stem

Brand WISE·Thermometers

Available part numbers (1)

T290

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
