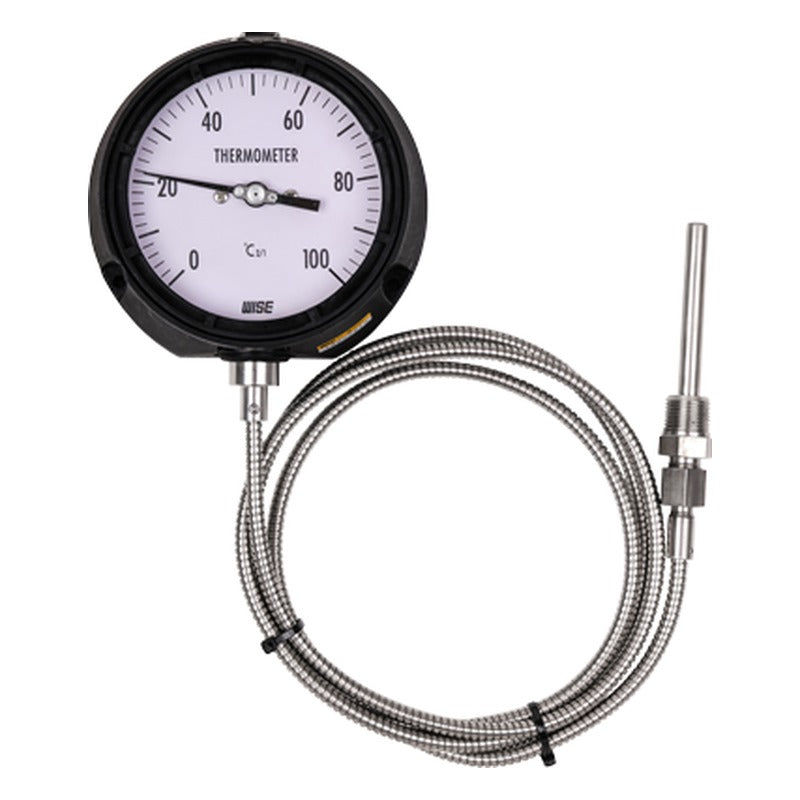

WISE T360 Safety Pattern Remote Reading Thermometer

Gas-filled (SAMA class IIIB) thermometer for corrosive and non-corrosive fluids in all industries; linear dial and temperature-compensated line give accurate readings at varying ambient conditions.

Key features

Safety pattern solid-front case with blow-out back
Turret style thermoplastic case with mounting lugs
Remote reading through armored capillary
Polycarbonate window
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	125 mm
Stem location / mounting	Bottom or lower back, surface lug mounting
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-200 to 700 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Case / cover	Black glass-reinforced PBT, solid front
Window	Polycarbonate
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Capillary	1.6/0.2 mm 316SS; armored tube 304SS
Ordering options	Mounting, stem material/diameter, connection type, range, capillary length, thermowell
Source	WISE data sheet TD03-02

T360

Dial: 125 mm | Type: Remote reading | Accuracy: ±2.0 % FS

ThermometersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T360 Safety Pattern Remote Reading Thermometer

Brand WISE·Thermometers

Available part numbers (1)

T360

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
