• WISE T710 Series Remote Reading Aluminium Case Contact Thermometer
1 1

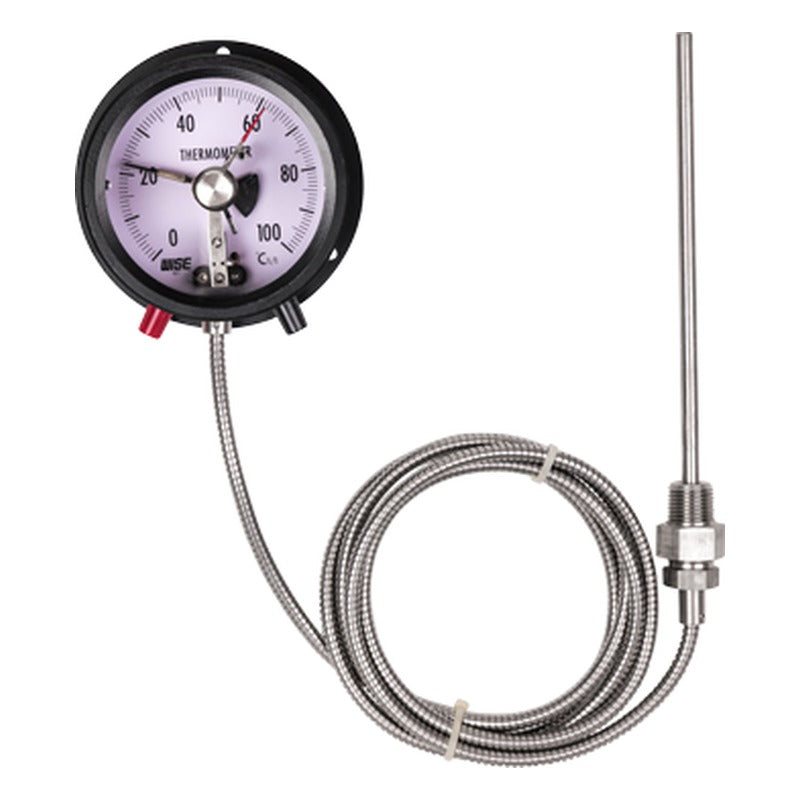

WISE T710 Series Remote Reading Aluminium Case Contact Thermometer

WISE T710 Series Remote Reading Aluminium Case Contact Thermometer

Dial thermometer with pointer-actuated electrical contacts that open or close a circuit at a manually set point, for audible/visual alarms or control via auxiliary relays.

Key features

  • Black finished aluminium case with contact head
  • High, low, high/low or high/high-high alarm models
  • Remote reading through armored capillary
  • Surface, flush lower or flush center mounting
  • Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter 100, 150 mm
Mounting Bottom surface or lower back flush
Measuring system Gas filled, SAMA class IIIB
Scale ranges -50 to 700 °C (scale table)
Accuracy ±2.0 % FS (±1.0 % FS option)
Contacts Max. 250 V AC; AC 220 V 0.25 A / DC 100 V 0.5 A; max. 2 sets
Case / cover Black finished aluminium
Window Acrylic
Stem 6.4, 8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection ⅜", ½", ¾" PT, NPT, PF
Ordering options Mounting, stem material/diameter, connection, range, capillary length, thermowell
Source WISE data sheet TD07-01
T711 Alarm: High | Dial: 100, 150 mm
T712 Alarm: High and low | Dial: 100, 150 mm
T713 Alarm: Low | Dial: 100, 150 mm
T714 Alarm: High and high-high | Dial: 100, 150 mm
Electrical Contact GaugesWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T710 Series Remote Reading Aluminium Case Contact Thermometer

Brand WISE·Electrical Contact Gauges

Available part numbers (4)

T711, T712, T713, T714

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T711Alarm: High | Dial: 100, 150 mm
T712Alarm: High and low | Dial: 100, 150 mm
T713Alarm: Low | Dial: 100, 150 mm
T714Alarm: High and high-high | Dial: 100, 150 mm

Need a different model, or a part not listed here? Send us your parts list →
