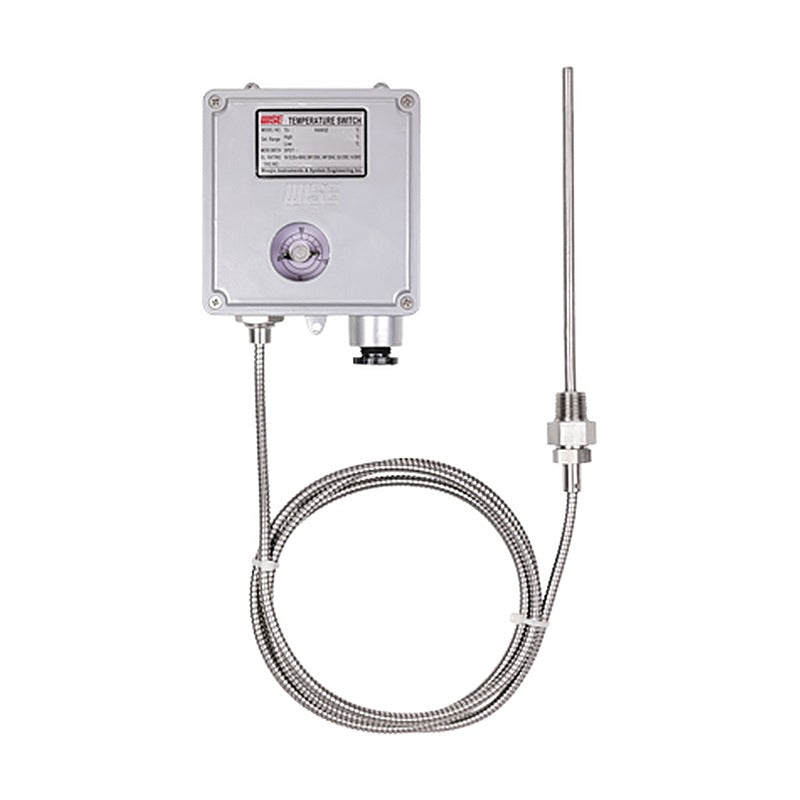

WISE T941, T942 Weatherproof Temperature Switch

Weatherproof blind temperature switch with snap-action micro contacts for corrosive fluid service; dead band is fixed.

Key features

Weatherproof switch housing, silver gray finish
T941 single set point, T942 dual set point
Micro switch snap action, SPDT or DPDT
Direct mounting or remote bulb up to 10 m capillary
Repeatability ±1.0 % of adjustable range

Specifications

Measuring system	Gas, SAMA class IIIB, -200 to 700 °C
Scale ranges	-50 to 700 °C (scale table)
Dead band	One SPDT 5-6 % FS; two SPDT 12 % FS
Repeatability	±1.0 % of adjustable range
Switch form	One or two SPDT / DPDT
Contact rating	AC 125/250 V 15 A; DC 30 V 2 A
Conduit connection	½" or ¾" PF
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Ordering options	Stem, connection, range, capillary length, thermowell
Source	WISE data sheet TD09-03

T941		Set point: Single \| Housing: Weatherproof
T942		Set point: Dual \| Housing: Weatherproof

Temperature SwitchesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T941, T942 Weatherproof Temperature Switch

Brand WISE·Temperature Switches

Available part numbers (2)

T941, T942

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
