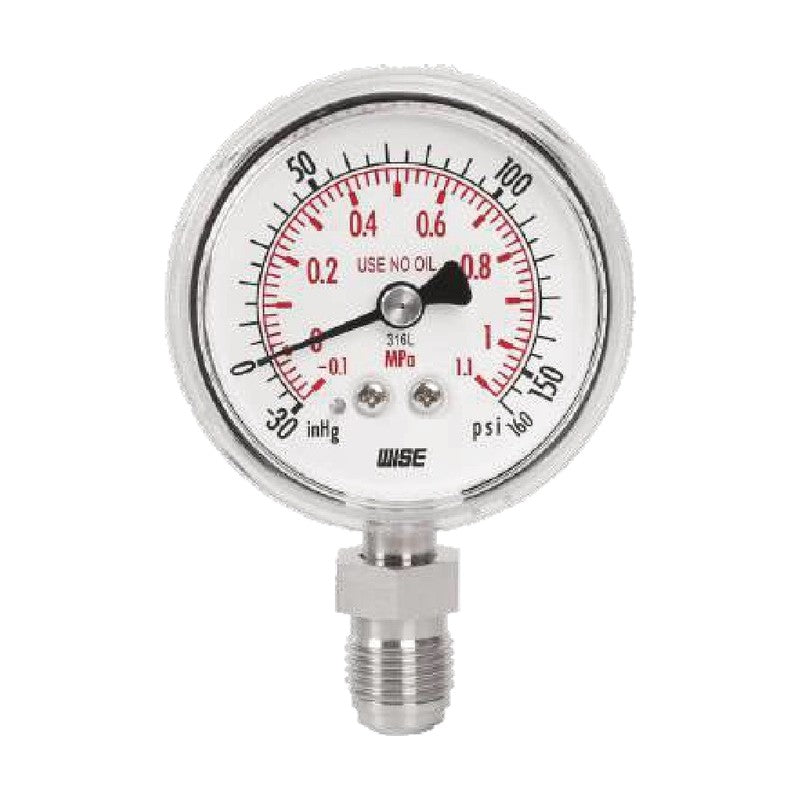

WISE UHP Pressure Gauges

WISE UHP Pressure Gauges

Ultra-high-purity electropolished 316L pressure gauges for semiconductor gas lines, including EP-grade, double-melt and BA-grade versions and a miniature gauge.

Specifications

Industries (catalogs) Semiconductor
WISE UHP Pressure Gauges
P810 Product: UHP Pressure Gauge, EP grade | Nominal Diameter: 35, 50, 63 mm (P820: 50, 63 mm) | Accuracy: ASME B40.1 Grade A / Grade B | Scale Range: 0-25 MPa | Working Temperature: Ambient -40-65 °C, process max. 100 °C | Pressure Connection: 316L SS electropolished, Ra ≤ 0.25 µm, 1/4" NPT male or swivel face seal | Element: 316L SS, C-type Bourdon tube < 6 MPa, helical ≥ 6 MPa
P820 Product: UHP Pressure Gauge, EP grade / double melt | Nominal Diameter: 35, 50, 63 mm (P820: 50, 63 mm) | Accuracy: ASME B40.1 Grade A / Grade B | Scale Range: 0-25 MPa | Working Temperature: Ambient -40-65 °C, process max. 100 °C | Pressure Connection: 316L SS electropolished, Ra ≤ 0.25 µm, 1/4" NPT male or swivel face seal | Element: 316L SS, C-type Bourdon tube < 6 MPa, helical ≥ 6 MPa
P830 Product: UHP Pressure Gauge, BA grade | Nominal Diameter: 35, 50, 63 mm (P820: 50, 63 mm) | Accuracy: ASME B40.1 Grade A / Grade B | Scale Range: 0-25 MPa | Working Temperature: Ambient -40-65 °C, process max. 100 °C | Pressure Connection: 316L SS electropolished, Ra ≤ 0.25 µm, 1/4" NPT male or swivel face seal | Element: 316L SS, C-type Bourdon tube < 6 MPa, helical ≥ 6 MPa
P850 Product: UHP Miniature Pressure Gauge | Nominal Diameter: 28mm | Accuracy: ±3.0% of full sale | Scale Range: -0.1~0.2, -0.1~1MPa | Working Temperature: -5~60℃ | Pressure Connection: Type 316L Stainless steel Electropolished center / back mount surface finish Ra ≤ 0.25㎛ / ·Swivel male or female face seal fitting / ·1.125” W or C Seal | Diaphragm: Type 316L | Case: Type 304SS
Pressure GaugesWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE UHP Pressure Gauges

Brand WISE·Pressure Gauges

Available part numbers (4)

P810, P820, P830, P850

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
WISE UHP Pressure Gauges
0 selected
RFQ List (0)
Product codeSpec
P810Product: UHP Pressure Gauge, EP grade | Nominal Diameter: 35, 50, 63 mm (P820: 50, 63 mm) | Accuracy: ASME B40.1 Grade A / Grade B | Scale Range: 0-25 MPa | Working Temperature: Ambient -40-65 °C, process max. 100 °C | Pressure Connection: 316L SS electropolished, Ra ≤ 0.25 µm, 1/4" NPT male or swivel face seal | Element: 316L SS, C-type Bourdon tube < 6 MPa, helical ≥ 6 MPa
P820Product: UHP Pressure Gauge, EP grade / double melt | Nominal Diameter: 35, 50, 63 mm (P820: 50, 63 mm) | Accuracy: ASME B40.1 Grade A / Grade B | Scale Range: 0-25 MPa | Working Temperature: Ambient -40-65 °C, process max. 100 °C | Pressure Connection: 316L SS electropolished, Ra ≤ 0.25 µm, 1/4" NPT male or swivel face seal | Element: 316L SS, C-type Bourdon tube < 6 MPa, helical ≥ 6 MPa
P830Product: UHP Pressure Gauge, BA grade | Nominal Diameter: 35, 50, 63 mm (P820: 50, 63 mm) | Accuracy: ASME B40.1 Grade A / Grade B | Scale Range: 0-25 MPa | Working Temperature: Ambient -40-65 °C, process max. 100 °C | Pressure Connection: 316L SS electropolished, Ra ≤ 0.25 µm, 1/4" NPT male or swivel face seal | Element: 316L SS, C-type Bourdon tube < 6 MPa, helical ≥ 6 MPa
P850Product: UHP Miniature Pressure Gauge | Nominal Diameter: 28mm | Accuracy: ±3.0% of full sale | Scale Range: -0.1~0.2, -0.1~1MPa | Working Temperature: -5~60℃ | Pressure Connection: Type 316L Stainless steel Electropolished center / back mount surface finish Ra ≤ 0.25㎛ / ·Swivel male or female face seal fitting / ·1.125” W or C Seal | Diaphragm: Type 316L | Case: Type 304SS
