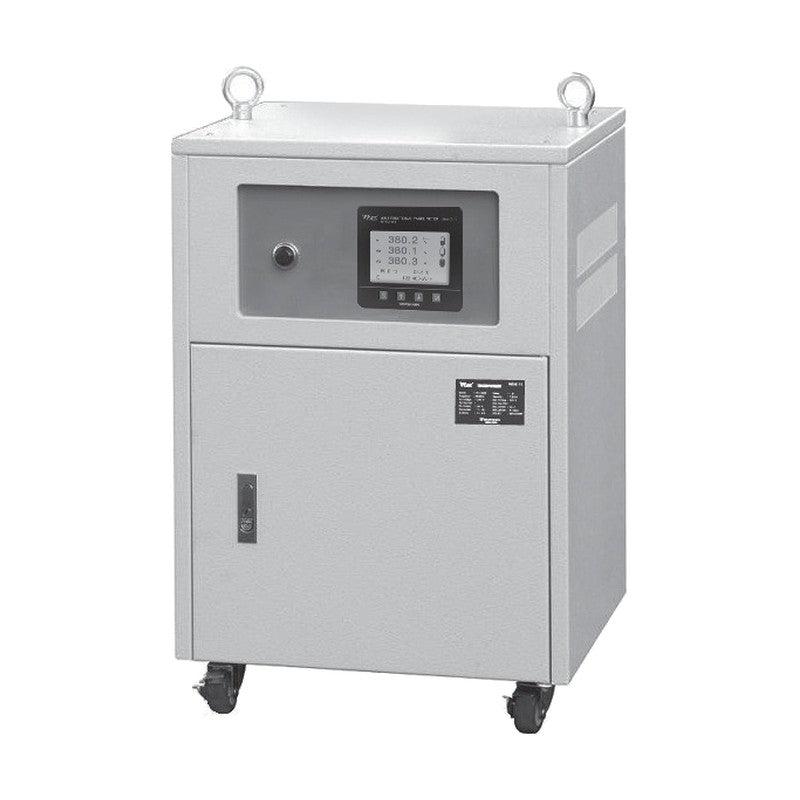

WOONYOUNG Cased Three-Phase Isolation Transformer with Digital Power Meter WYCM Series (WY3PCM-KW)

WOONYOUNG Cased Three-Phase Isolation Transformer with Digital Power Meter WYCM Series (WY3PCM-KW)

Three-phase double-winding dry-type cased transformer with a front digital multi-meter and RS-485 (Modbus) communication, 380/440 V to 220 V.

Key features

  • Digital power meter on the front panel
  • RS-485 (Modbus) communication
  • Rear door with terminal block, casters for transport
  • Insulation class B (5 kVA), class H (7.5-100 kVA)

Specifications

Phase Three phase
Winding Double winding (isolation)
Enclosure Case type with meter (WYCM)
WY3PCM-5KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 5 kVA | Dimensions W x H x D (mm): 380 x 550 x 430 | Weight (kg): 71.0
WY3PCM-7.5KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 7.5 kVA | Dimensions W x H x D (mm): 380 x 550 x 430 | Weight (kg): 84.0
WY3PCM-10KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 10 kVA | Dimensions W x H x D (mm): 430 x 550 x 450 | Weight (kg): 98.0
WY3PCM-15KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 15 kVA | Dimensions W x H x D (mm): 450 x 600 x 450 | Weight (kg): 126.0
WY3PCM-20KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 20 kVA | Dimensions W x H x D (mm): 500 x 650 x 530 | Weight (kg): 167.0
WY3PCM-30KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 30 kVA | Dimensions W x H x D (mm): 550 x 700 x 530 | Weight (kg): 191.0
WY3PCM-40KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 40 kVA | Dimensions W x H x D (mm): 600 x 800 x 560 | Weight (kg): 226.0
WY3PCM-50KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 50 kVA | Dimensions W x H x D (mm): 600 x 800 x 560 | Weight (kg): 275.0
WY3PCM-75KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 75 kVA | Dimensions W x H x D (mm): 650 x 850 x 600 | Weight (kg): 360.0
WY3PCM-100KW Primary (V): Y-n 380-440 | Secondary (V): Delta 220 | Capacity: 100 kVA | Dimensions W x H x D (mm): 750 x 850 x 650 | Weight (kg): 430.0
Industrial TransformersWOONYOUNG
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG Cased Three-Phase Isolation Transformer with Digital Power Meter WYCM Series (WY3PCM-KW)

Brand WOONYOUNG·Industrial Transformers

Available part numbers (10)

WY3PCM-5KW, WY3PCM-7.5KW, WY3PCM-10KW, WY3PCM-15KW, WY3PCM-20KW, WY3PCM-30KW, WY3PCM-40KW, WY3PCM-50KW, WY3PCM-75KW, WY3PCM-100KW
