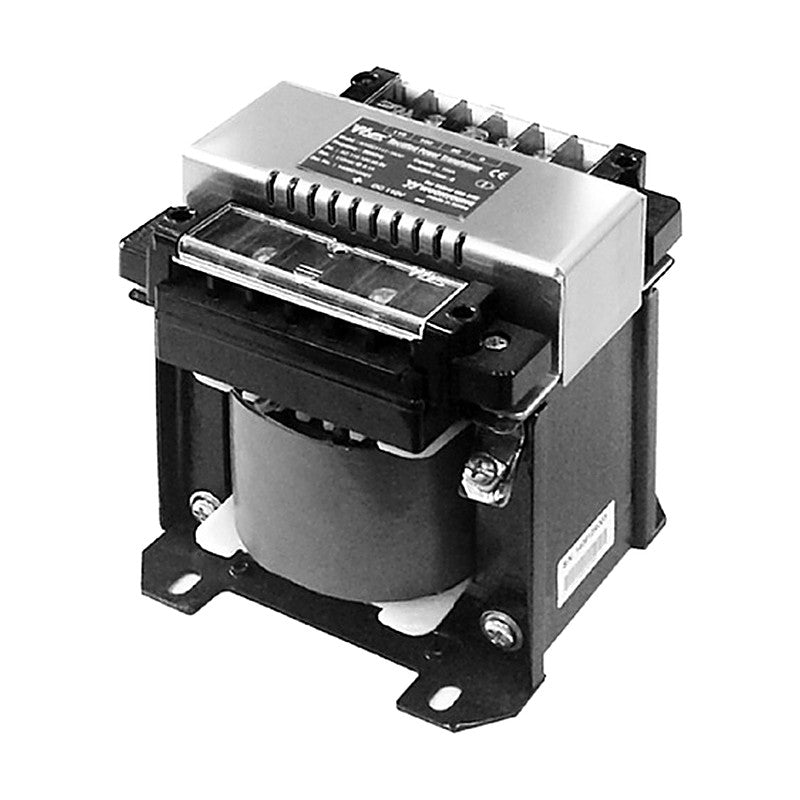

WOONYOUNG DC Power Transformer WYDC-AP Series (AC 220 V to DC 24 V / DC 110 V)

WOONYOUNG DC Power Transformer WYDC-AP Series (AC 220 V to DC 24 V / DC 110 V)

Transformer with built-in rectifier and smoothing circuit converting AC 220 V input to DC 24 V or DC 110 V output, used for clutches, lamps and relays.

Key features

  • Built-in rectification and smoothing circuit
  • DC 24 V or DC 110 V output
  • For clutches, lamps and relays
  • Insulation class B
  • Other specifications to order

Specifications

Primary (V) AC 0-220
Insulation class B
WYDC-22450AP Output (V): DC 24 | Capacity: 50 VA | Output current (A): 2.1 | Dimensions W x H x D (mm): 80 x 100 x 87 | Weight (kg): 1.75
WYDC-224100AP Output (V): DC 24 | Capacity: 100 VA | Output current (A): 4.15 | Dimensions W x H x D (mm): 103 x 119 x 107 | Weight (kg): 2.70
WYDC-224150AP Output (V): DC 24 | Capacity: 150 VA | Output current (A): 6.25 | Dimensions W x H x D (mm): 110 x 130 x 104 | Weight (kg): 3.85
WYDC-224200AP Output (V): DC 24 | Capacity: 200 VA | Output current (A): 8.33 | Dimensions W x H x D (mm): 120 x 138 x 114 | Weight (kg): 5.12
WYDC-224300AP Output (V): DC 24 | Capacity: 300 VA | Output current (A): 12.5 | Dimensions W x H x D (mm): 140 x 156 x 123 | Weight (kg): 7.30
WYDC-211500AP Output (V): DC 110 | Capacity: 500 VA | Output current (A): 4.5 | Dimensions W x H x D (mm): 140 x 156 x 123 | Weight (kg): 7.30
WYDC-2111KAP Output (V): DC 110 | Capacity: 1 kVA | Output current (A): 9.1 | Dimensions W x H x D (mm): 160 x 183 x 156 | Weight (kg): 12.60
Industrial TransformersWOONYOUNG
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG DC Power Transformer WYDC-AP Series (AC 220 V to DC 24 V / DC 110 V)

Brand WOONYOUNG·Industrial Transformers

Available part numbers (7)

WYDC-22450AP, WYDC-224100AP, WYDC-224150AP, WYDC-224200AP, WYDC-224300AP, WYDC-211500AP, WYDC-2111KAP

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
