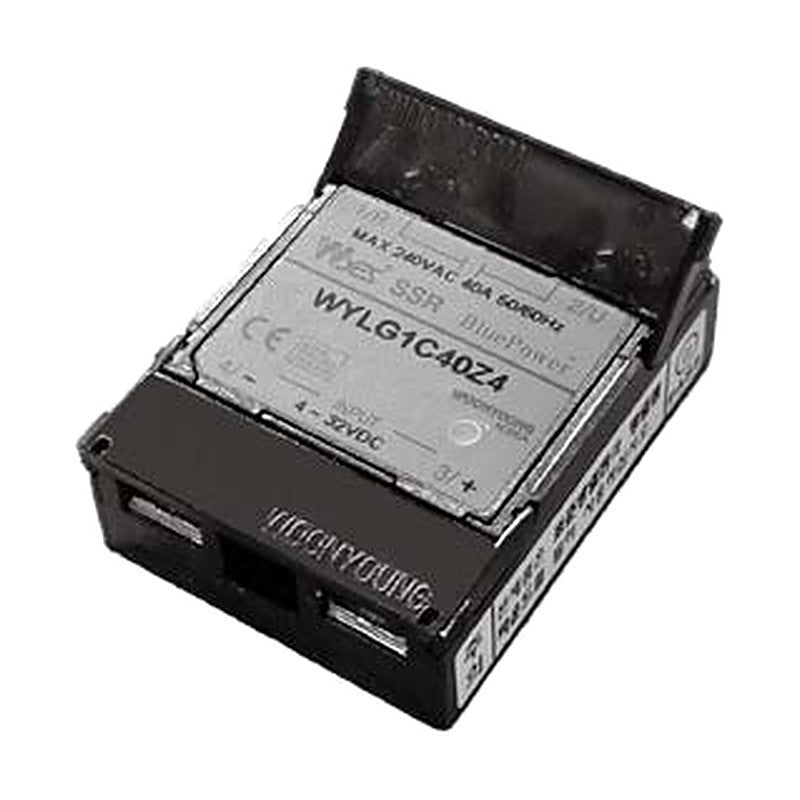

Woonyoung Economy Single Phase SSR WYLG / WYLH (10-40A)

Woonyoung Economy Single Phase SSR WYLG / WYLH (10-40A)

Economy single-phase SSR series rated AC 90-480V, 10-40A, with LED status indication.

Key features

  • 10 / 15 / 25 / 40 A
  • 220 VAC (G) and 440 VAC (H) versions
  • DC (Z4) or AC (Z40) control input
  • Zero cross switching

Specifications

Phase 1
Weight 0.1 kg
Dielectric strength 2000 VAC / 1 min
WYLG1C10Z4 Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 125 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C10Z40 Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 125 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLG1C15Z4 Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 260 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C15Z40 Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 260 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLG1C25Z4 Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C25Z40 Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLG1C40Z4 Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 315 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C40Z40 Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 315 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C10Z4 Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C10Z40 Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C15Z4 Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C15Z40 Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C25Z4 Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C25Z40 Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C40Z4 Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C40Z40 Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
Solid State RelaysWoonyoung
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Economy Single Phase SSR WYLG / WYLH (10-40A)

Brand Woonyoung·Solid State Relays

Available part numbers (16)

WYLG1C10Z4, WYLG1C10Z40, WYLG1C15Z4, WYLG1C15Z40, WYLG1C25Z4, WYLG1C25Z40, WYLG1C40Z4, WYLG1C40Z40, WYLH1C10Z4, WYLH1C10Z40 + 6 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYLG1C10Z4Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 125 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C10Z40Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 125 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLG1C15Z4Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 260 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C15Z40Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 260 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLG1C25Z4Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C25Z40Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLG1C40Z4Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 315 A | Contact voltage drop: 1.0 V | Control input: DC 4-32V | Switching: Zero cross
WYLG1C40Z40Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 315 A | Contact voltage drop: 1.0 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C10Z4Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C10Z40Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C15Z4Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C15Z40Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C25Z4Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C25Z40Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYLH1C40Z4Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYLH1C40Z40Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
