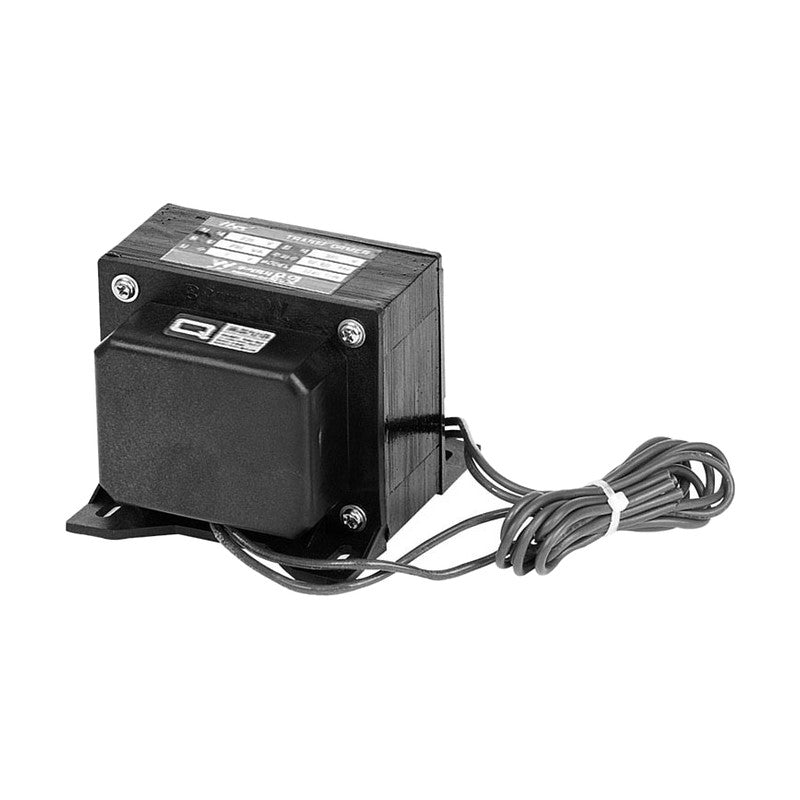

WOONYOUNG Lead-Wire Isolation Transformer WY21-AE Series (220 V to 24 V)

WOONYOUNG Lead-Wire Isolation Transformer WY21-AE Series (220 V to 24 V)

Single-phase isolation transformer with lead-wire connection, 220 V input and 24 V output.

Key features

  • Lead-wire connection (0.75 mm2 primary and secondary)
  • Winding protection cover
  • CE certified

Specifications

Phase Single phase
WY21-40AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WY21-60AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.46
WY21-80AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WY21-100AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WY21-150AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 2.84
WY21-200AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 200 VA | Dimensions W x H x D (mm): 108 x 93 x 106 | Weight (kg): 3.45
WY21-300AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 300 VA | Dimensions W x H x D (mm): 118 x 99 x 110 | Weight (kg): 4.78
WY21-500AE Type: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 500 VA | Dimensions W x H x D (mm): 137 x 115 x 119 | Weight (kg): 6.89
Industrial TransformersWOONYOUNG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG Lead-Wire Isolation Transformer WY21-AE Series (220 V to 24 V)

Brand WOONYOUNG·Industrial Transformers

Available part numbers (8)

WY21-40AE, WY21-60AE, WY21-80AE, WY21-100AE, WY21-150AE, WY21-200AE, WY21-300AE, WY21-500AE

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY21-40AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 68 x 81 | Weight (kg): 1.30
WY21-60AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 68 x 86 | Weight (kg): 1.46
WY21-80AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 75 x 101 | Weight (kg): 1.95
WY21-100AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 103 | Weight (kg): 2.27
WY21-150AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 85 x 110 | Weight (kg): 2.84
WY21-200AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 200 VA | Dimensions W x H x D (mm): 108 x 93 x 106 | Weight (kg): 3.45
WY21-300AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 300 VA | Dimensions W x H x D (mm): 118 x 99 x 110 | Weight (kg): 4.78
WY21-500AEType: WE | Primary (V): 0-220 (blue lead) | Secondary (V): 0-24 (black/red leads) | Capacity: 500 VA | Dimensions W x H x D (mm): 137 x 115 x 119 | Weight (kg): 6.89
