• Woonyoung Miniature DC SSR WYGB (60-200VDC, 1/4 circuit)
1 1

Woonyoung Miniature DC SSR WYGB (60-200VDC, 1/4 circuit)

Woonyoung Miniature DC SSR WYGB (60-200VDC, 1/4 circuit)

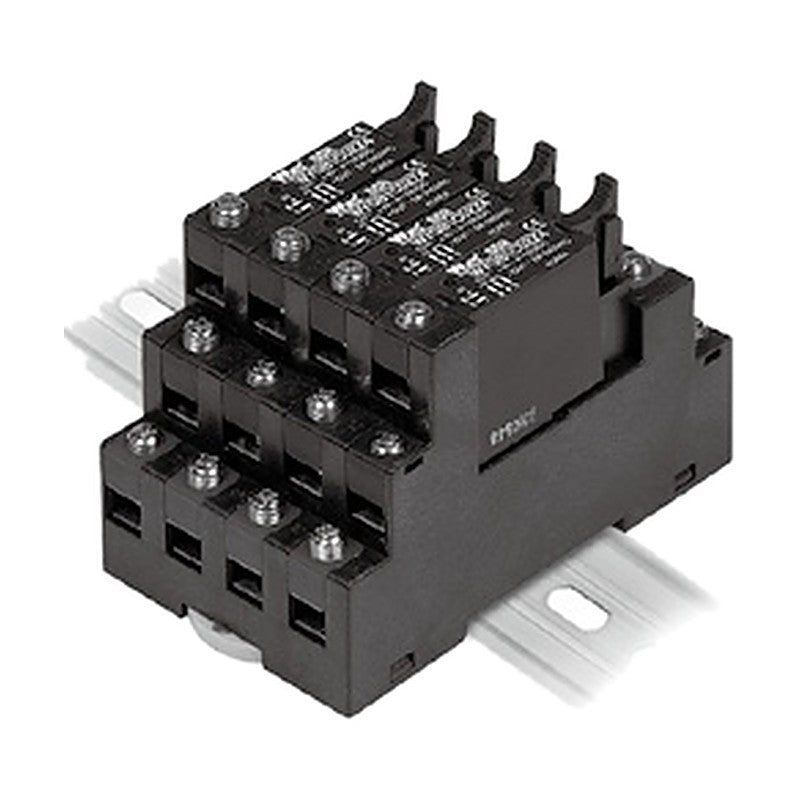

Miniature DC SSR with PCB insertion sockets and DIN rail mounting in 1- and 4-circuit versions, easy to install, repair and inspect.

Key features

  • DC load switching
  • 1 / 4 circuits
  • Pluggable

Specifications

Input voltage range 4-32 VDC
Output DC
Dielectric strength 1500 VAC / 1 min
Weight 10 g
WYGB4C062D4 Circuits: 4 | Rated load current: 2 A | Rated voltage: 60 VDC
WYGB4C102D4 Circuits: 4 | Rated load current: 1.8 A | Rated voltage: 100 VDC
WYGB4C205D4 Circuits: 4 | Rated load current: 1.5 A | Rated voltage: 200 VDC
WYGB1C062D4 Circuits: 1 | Rated load current: 2.0 A | Rated voltage: 60 VDC | ON resistance: 0.06 ohm
WYGB1C102D4 Circuits: 1 | Rated load current: 1.8 A | Rated voltage: 100 VDC | ON resistance: 0.1 ohm
WYGB1C201D4 Circuits: 1 | Rated load current: 1.5 A | Rated voltage: 200 VDC | ON resistance: 0.28 ohm
Solid State RelaysWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Miniature DC SSR WYGB (60-200VDC, 1/4 circuit)

Brand Woonyoung·Solid State Relays

Available part numbers (6)

WYGB4C062D4, WYGB4C102D4, WYGB4C205D4, WYGB1C062D4, WYGB1C102D4, WYGB1C201D4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYGB4C062D4Circuits: 4 | Rated load current: 2 A | Rated voltage: 60 VDC
WYGB4C102D4Circuits: 4 | Rated load current: 1.8 A | Rated voltage: 100 VDC
WYGB4C205D4Circuits: 4 | Rated load current: 1.5 A | Rated voltage: 200 VDC
WYGB1C062D4Circuits: 1 | Rated load current: 2.0 A | Rated voltage: 60 VDC | ON resistance: 0.06 ohm
WYGB1C102D4Circuits: 1 | Rated load current: 1.8 A | Rated voltage: 100 VDC | ON resistance: 0.1 ohm
WYGB1C201D4Circuits: 1 | Rated load current: 1.5 A | Rated voltage: 200 VDC | ON resistance: 0.28 ohm
