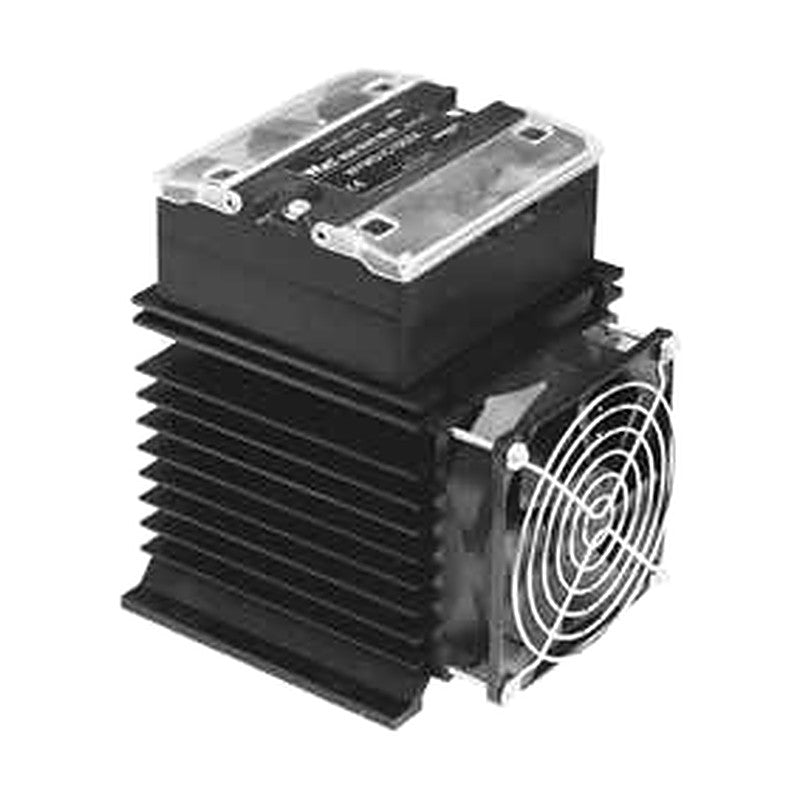

Woonyoung Module Type Single Phase SSR WYNMG / WYNMH (50-160A)

Woonyoung Module Type Single Phase SSR WYNMG / WYNMH (50-160A)

Module-type single-phase SSR built with highly reliable power devices for high current capacity of 50-160A.

Key features

  • 50-160 A
  • 220 VAC (G) / 440 VAC (H)
  • Zero cross or random switching
  • DC or AC control input

Specifications

Phase 1
Weight 2.3 kg
WYNMG1C50Z4 Phase: 1 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMG1C50R4 Phase: 1 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMG1C50Z40 Phase: 1 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMG1C50R40 Phase: 1 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMG1C70Z4 Phase: 1 | Rated load current: 70 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMG1C70R4 Phase: 1 | Rated load current: 70 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMG1C70Z40 Phase: 1 | Rated load current: 70 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMG1C70R40 Phase: 1 | Rated load current: 70 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMG1C90Z4 Phase: 1 | Rated load current: 90 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMG1C90R4 Phase: 1 | Rated load current: 90 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMG1C90Z40 Phase: 1 | Rated load current: 90 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMG1C90R40 Phase: 1 | Rated load current: 90 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMG1C110Z4 Phase: 1 | Rated load current: 110 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMG1C110R4 Phase: 1 | Rated load current: 110 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMG1C110Z40 Phase: 1 | Rated load current: 110 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMG1C110R40 Phase: 1 | Rated load current: 110 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMG1C130Z4 Phase: 1 | Rated load current: 130 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMG1C130R4 Phase: 1 | Rated load current: 130 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMG1C130Z40 Phase: 1 | Rated load current: 130 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMG1C130R40 Phase: 1 | Rated load current: 130 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMG1C160Z4 Phase: 1 | Rated load current: 160 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMG1C160R4 Phase: 1 | Rated load current: 160 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMG1C160Z40 Phase: 1 | Rated load current: 160 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMG1C160R40 Phase: 1 | Rated load current: 160 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMH1C50Z4 Phase: 1 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMH1C50R4 Phase: 1 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMH1C50Z40 Phase: 1 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMH1C50R40 Phase: 1 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1500 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMH1C70Z4 Phase: 1 | Rated load current: 70 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMH1C70R4 Phase: 1 | Rated load current: 70 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMH1C70Z40 Phase: 1 | Rated load current: 70 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMH1C70R40 Phase: 1 | Rated load current: 70 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMH1C90Z4 Phase: 1 | Rated load current: 90 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMH1C90R4 Phase: 1 | Rated load current: 90 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMH1C90Z40 Phase: 1 | Rated load current: 90 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMH1C90R40 Phase: 1 | Rated load current: 90 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2000 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMH1C110Z4 Phase: 1 | Rated load current: 110 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMH1C110R4 Phase: 1 | Rated load current: 110 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMH1C110Z40 Phase: 1 | Rated load current: 110 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMH1C110R40 Phase: 1 | Rated load current: 110 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2250 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMH1C130Z4 Phase: 1 | Rated load current: 130 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMH1C130R4 Phase: 1 | Rated load current: 130 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMH1C130Z40 Phase: 1 | Rated load current: 130 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMH1C130R40 Phase: 1 | Rated load current: 130 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYNMH1C160Z4 Phase: 1 | Rated load current: 160 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Zero cross
WYNMH1C160R4 Phase: 1 | Rated load current: 160 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYNMH1C160Z40 Phase: 1 | Rated load current: 160 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Zero cross
WYNMH1C160R40 Phase: 1 | Rated load current: 160 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 5400 A | Contact voltage drop: 1.6 V | Control input: AC 90-240V | Switching: Random (non zero cross)
Solid State RelaysWoonyoung
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Module Type Single Phase SSR WYNMG / WYNMH (50-160A)

Brand Woonyoung·Solid State Relays

Available part numbers (48)

WYNMG1C50Z4, WYNMG1C50R4, WYNMG1C50Z40, WYNMG1C50R40, WYNMG1C70Z4, WYNMG1C70R4, WYNMG1C70Z40, WYNMG1C70R40, WYNMG1C90Z4, WYNMG1C90R4 + 38 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
