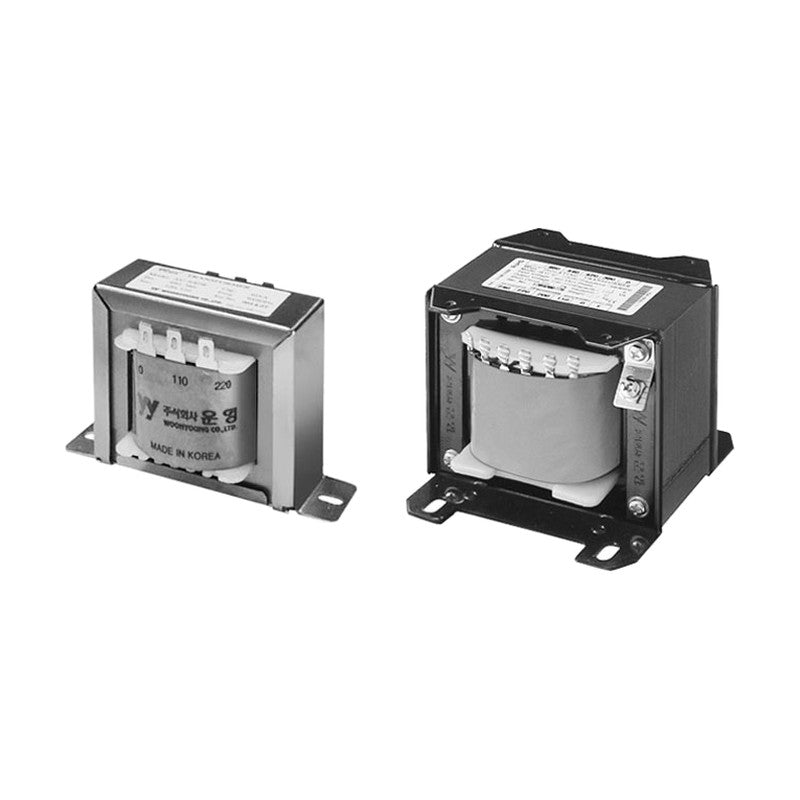

WOONYOUNG Open-Type Auto Transformer WYAU-DWO Series (110-460 V)

WOONYOUNG Open-Type Auto Transformer WYAU-DWO Series (110-460 V)

Single-phase auto transformer with solder (WB) or open (WO) terminals and 110-460 V taps (0 V common).

Key features

  • Single winding (auto) construction, 0 V common
  • Primary and secondary taken from the same winding
  • Insulation class B

Specifications

Phase Single phase
Winding Auto transformer
WYAU-10DW Type: WB | Voltage taps (V): 0-110-220-380-440 | Capacity: 10 VA | Dimensions W x H x D (mm): 70 x 44 x 38 | Weight (kg): 0.28
WYAU-20DW Type: WB | Voltage taps (V): 0-110-220-380-440 | Capacity: 25 VA | Dimensions W x H x D (mm): 85 x 52 x 44 | Weight (kg): 0.45
WYAU-50DW Type: WB | Voltage taps (V): 0-110-220-380-440 | Capacity: 25 VA | Dimensions W x H x D (mm): 95 x 60 x 55 | Weight (kg): 0.78
WYAU-75DWO Type: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 69 x 83 | Weight (kg): 1.34
WYAU-100DWO Type: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 69 x 88 | Weight (kg): 1.79
WYAU-150DWO Type: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 80 VA | Dimensions W x H x D (mm): 88 x 78 x 103 | Weight (kg): 1.98
WYAU-200DWO Type: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 105 | Weight (kg): 2.58
WYAU-300DWO Type: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 86 x 116 | Weight (kg): 3.23
Industrial TransformersWOONYOUNG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG Open-Type Auto Transformer WYAU-DWO Series (110-460 V)

Brand WOONYOUNG·Industrial Transformers

Available part numbers (8)

WYAU-10DW, WYAU-20DW, WYAU-50DW, WYAU-75DWO, WYAU-100DWO, WYAU-150DWO, WYAU-200DWO, WYAU-300DWO

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYAU-10DWType: WB | Voltage taps (V): 0-110-220-380-440 | Capacity: 10 VA | Dimensions W x H x D (mm): 70 x 44 x 38 | Weight (kg): 0.28
WYAU-20DWType: WB | Voltage taps (V): 0-110-220-380-440 | Capacity: 25 VA | Dimensions W x H x D (mm): 85 x 52 x 44 | Weight (kg): 0.45
WYAU-50DWType: WB | Voltage taps (V): 0-110-220-380-440 | Capacity: 25 VA | Dimensions W x H x D (mm): 95 x 60 x 55 | Weight (kg): 0.78
WYAU-75DWOType: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 40 VA | Dimensions W x H x D (mm): 78 x 69 x 83 | Weight (kg): 1.34
WYAU-100DWOType: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 60 VA | Dimensions W x H x D (mm): 78 x 69 x 88 | Weight (kg): 1.79
WYAU-150DWOType: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 80 VA | Dimensions W x H x D (mm): 88 x 78 x 103 | Weight (kg): 1.98
WYAU-200DWOType: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 100 VA | Dimensions W x H x D (mm): 99 x 85 x 105 | Weight (kg): 2.58
WYAU-300DWOType: WO | Voltage taps (V): 0-110-220-380-420-440-460 | Capacity: 150 VA | Dimensions W x H x D (mm): 99 x 86 x 116 | Weight (kg): 3.23
