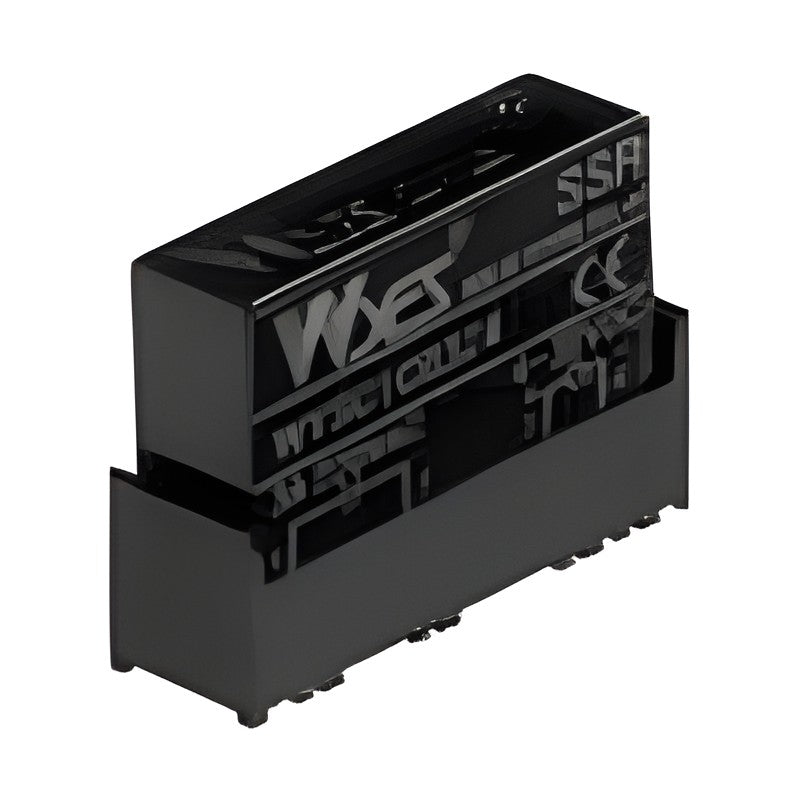

Woonyoung PCB & Socket Type DC SSR WYSC (50-500VDC)

Woonyoung PCB & Socket Type DC SSR WYSC (50-500VDC)

Small DC SSR that mounts directly on PCB or is modularized with sockets, with an LED lamp on the power input circuit.

Key features

  • DC load switching
  • LED input indicator
  • PCB or socket mounting

Specifications

Input voltage range 4-32 VDC
Output DC
Dielectric strength 1500 VAC / 1 min
Weight 10 g
WYSC1C0510D4 Rated voltage: 50 VDC | Rated load current: 10 A | Source: selection table p.49
WYSC1C105D4 Rated voltage: 100 VDC | Rated load current: 5 A | Source: selection table p.49
WYSC1C203D4 Rated voltage: 200 VDC | Rated load current: 3.0 A | ON resistance: 0.8 ohm
WYSC1C501D4 Rated voltage: 500 VDC | Rated load current: 1.0 A | ON resistance: 1.8 ohm
Solid State RelaysWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung PCB & Socket Type DC SSR WYSC (50-500VDC)

Brand Woonyoung·Solid State Relays

Available part numbers (4)

WYSC1C0510D4, WYSC1C105D4, WYSC1C203D4, WYSC1C501D4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSC1C0510D4Rated voltage: 50 VDC | Rated load current: 10 A | Source: selection table p.49
WYSC1C105D4Rated voltage: 100 VDC | Rated load current: 5 A | Source: selection table p.49
WYSC1C203D4Rated voltage: 200 VDC | Rated load current: 3.0 A | ON resistance: 0.8 ohm
WYSC1C501D4Rated voltage: 500 VDC | Rated load current: 1.0 A | ON resistance: 1.8 ohm
