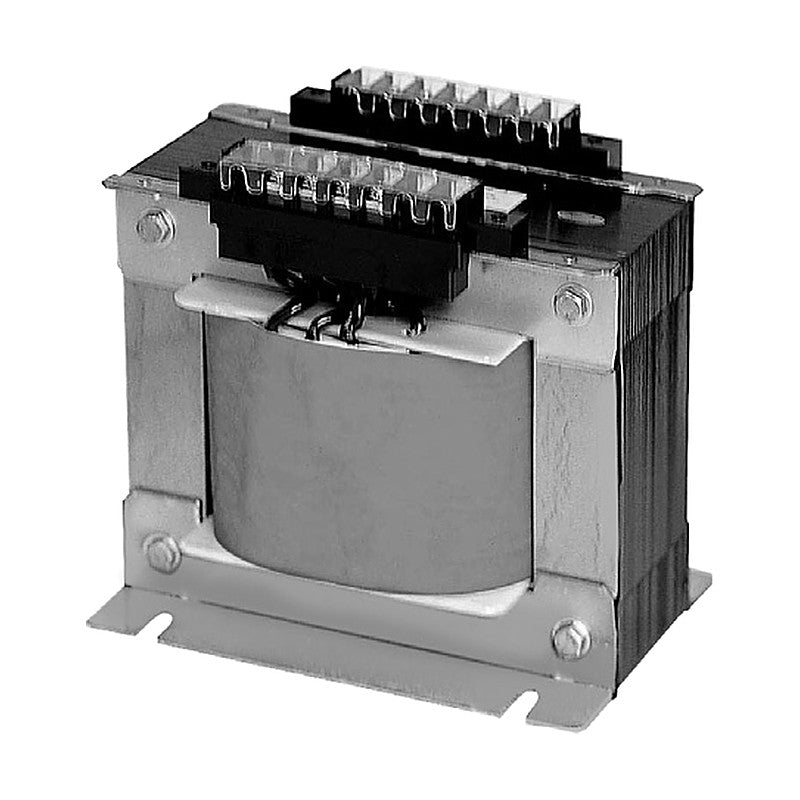

WOONYOUNG Single-Phase Isolation Transformer WY52-AW Series (440-500 V to 110-220 V)

WOONYOUNG Single-Phase Isolation Transformer WY52-AW Series (440-500 V to 110-220 V)

Single-phase isolation transformer for 440/460/480/500 V lines with 110/220 V secondary.

Key features

  • Isolation (double winding) construction
  • Primary and secondary voltage taps
  • Rated capacity at the maximum voltage tap
  • CE certified
  • Insulation class H (3-5 kVA)
  • I-bolt attached for 3 kVA and larger

Specifications

Phase Single phase
WY52-60AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY52-80AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY52-100AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY52-150AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.20
WY52-200AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY52-300AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY52-500AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY52-750AW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY52-1KAW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY52-1.5KAW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY52-2KAW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WY52-3KAW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 3 kVA | Dimensions W x H x D (mm): 219 x 226 x 170 | Weight (kg): 26.70
WY52-5KAW Type: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 245 x 240 x 192 | Weight (kg): 40.20
Industrial TransformersWOONYOUNG
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG Single-Phase Isolation Transformer WY52-AW Series (440-500 V to 110-220 V)

Brand WOONYOUNG·Industrial Transformers

Available part numbers (13)

WY52-60AW, WY52-80AW, WY52-100AW, WY52-150AW, WY52-200AW, WY52-300AW, WY52-500AW, WY52-750AW, WY52-1KAW, WY52-1.5KAW + 3 more — see full table ↓

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY52-60AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 60 VA | Dimensions W x H x D (mm): 79 x 89 x 88 | Weight (kg): 1.65
WY52-80AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 80 VA | Dimensions W x H x D (mm): 89 x 98 x 105 | Weight (kg): 2.30
WY52-100AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 100 VA | Dimensions W x H x D (mm): 98 x 106 x 105 | Weight (kg): 2.59
WY52-150AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 150 VA | Dimensions W x H x D (mm): 98 x 106 x 113 | Weight (kg): 3.20
WY52-200AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 200 VA | Dimensions W x H x D (mm): 112 x 114 x 110 | Weight (kg): 3.60
WY52-300AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 300 VA | Dimensions W x H x D (mm): 121 x 122 x 114 | Weight (kg): 4.97
WY52-500AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 500 VA | Dimensions W x H x D (mm): 140 x 140 x 126 | Weight (kg): 7.10
WY52-750AWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 750 VA | Dimensions W x H x D (mm): 160 x 162 x 146 | Weight (kg): 10.70
WY52-1KAWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 1 kVA | Dimensions W x H x D (mm): 160 x 162 x 156 | Weight (kg): 12.30
WY52-1.5KAWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 1.5 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 150 | Weight (kg): 16.50
WY52-2KAWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 2 kVA | Dimensions W x H x D (mm): 184 x 188.5 x 170 | Weight (kg): 20.10
WY52-3KAWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 3 kVA | Dimensions W x H x D (mm): 219 x 226 x 170 | Weight (kg): 26.70
WY52-5KAWType: WT | Primary (V): 0-440-460-480-500 | Secondary (V): 0-110-220-(E) | Capacity: 5 kVA | Dimensions W x H x D (mm): 245 x 240 x 192 | Weight (kg): 40.20
