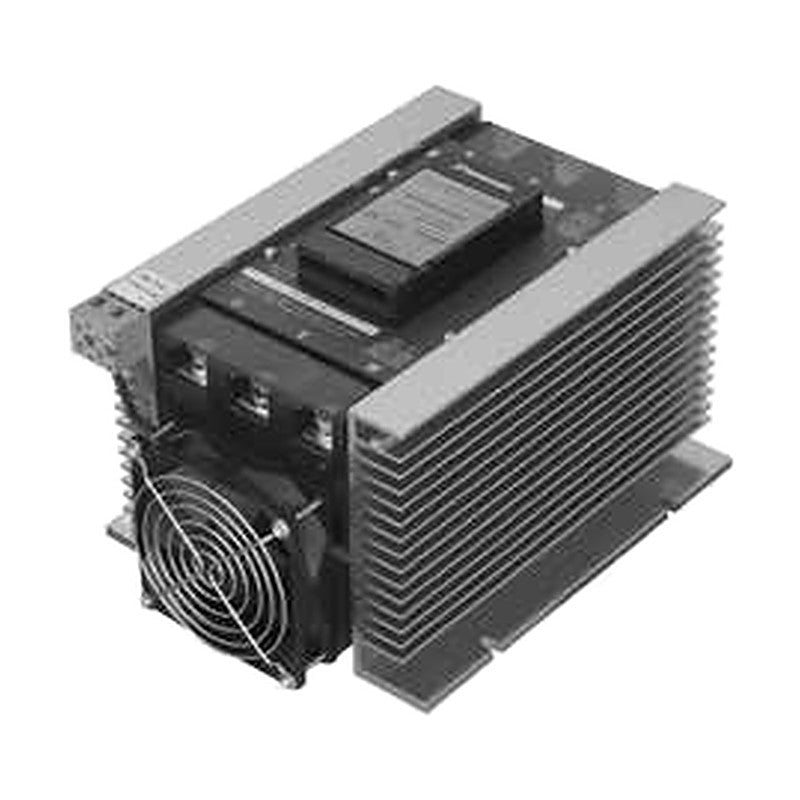

Woonyoung Single Phase SSR with Self Heat Sink and Fan WYFMH (60-150A)

Woonyoung Single Phase SSR with Self Heat Sink and Fan WYFMH (60-150A)

Large-capacity integral single-phase SSR with self heat sink rated AC 90-480V, 60-150A, usable without an additional heat sink.

Key features

  • 60 / 80 / 100 / 150 A
  • Integrated heat sink
  • Zero cross or random switching
  • DC or AC control input

Specifications

Phase 1
Weight 5.2 kg
WYFMH1C60Z4 Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C60R4 Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C60Z40 Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C60R40 Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFMH1C80Z4 Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C80R4 Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C80Z40 Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C80R40 Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFMH1C100Z4 Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C100R4 Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C100Z40 Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C100R40 Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFMH1C150Z4 Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C150R4 Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C150Z40 Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C150R40 Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: AC 90-240V | Switching: Random (non zero cross)
Solid State RelaysWoonyoung
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Single Phase SSR with Self Heat Sink and Fan WYFMH (60-150A)

Brand Woonyoung·Solid State Relays

Available part numbers (16)

WYFMH1C60Z4, WYFMH1C60R4, WYFMH1C60Z40, WYFMH1C60R40, WYFMH1C80Z4, WYFMH1C80R4, WYFMH1C80Z40, WYFMH1C80R40, WYFMH1C100Z4, WYFMH1C100R4 + 6 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFMH1C60Z4Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C60R4Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C60Z40Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C60R40Phase: 1 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFMH1C80Z4Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C80R4Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C80Z40Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C80R40Phase: 1 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFMH1C100Z4Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C100R4Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C100Z40Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C100R40Phase: 1 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.4 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFMH1C150Z4Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: DC 4-32V | Switching: Zero cross
WYFMH1C150R4Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFMH1C150Z40Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: AC 90-240V | Switching: Zero cross
WYFMH1C150R40Phase: 1 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.45 V | Control input: AC 90-240V | Switching: Random (non zero cross)
