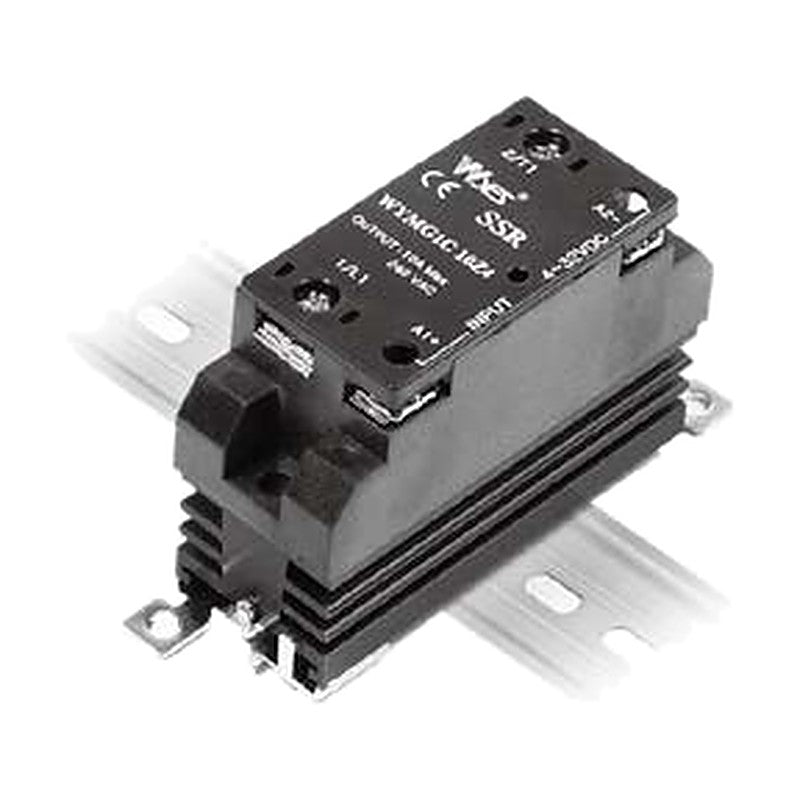

Woonyoung Single Phase SSR with Self Heat Sink WYMG / WYMH (10-40A)

Woonyoung Single Phase SSR with Self Heat Sink WYMG / WYMH (10-40A)

Integrated single-phase SSR with self heat sink rated AC 90-240V or 90-480V, 10-40A, saving installation space and mountable on DIN rail.

Key features

  • Integrated heat sink
  • DIN rail mountable
  • Zero cross or random switching
  • DC or AC control input

Specifications

Phase 1
Dielectric strength 2000 VAC / 1 min
WYMG1C10Z4 Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C10R4 Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C10Z40 Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C10R40 Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMG1C15Z4 Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C15R4 Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C15Z40 Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C15R40 Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMG1C25Z4 Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C25R4 Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C25Z40 Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C25R40 Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMG1C40Z4 Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C40R4 Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C40Z40 Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C40R40 Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C10Z4 Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C10R4 Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C10Z40 Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C10R40 Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C15Z4 Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C15R4 Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C15Z40 Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C15R40 Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C25Z4 Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C25R4 Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C25Z40 Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C25R40 Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C40Z4 Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C40R4 Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C40Z40 Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C40R40 Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
Solid State RelaysWoonyoung
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Single Phase SSR with Self Heat Sink WYMG / WYMH (10-40A)

Brand Woonyoung·Solid State Relays

Available part numbers (32)

WYMG1C10Z4, WYMG1C10R4, WYMG1C10Z40, WYMG1C10R40, WYMG1C15Z4, WYMG1C15R4, WYMG1C15Z40, WYMG1C15R40, WYMG1C25Z4, WYMG1C25R4 + 22 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYMG1C10Z4Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C10R4Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C10Z40Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C10R40Phase: 1 | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMG1C15Z4Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C15R4Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C15Z40Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C15R40Phase: 1 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMG1C25Z4Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C25R4Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C25Z40Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C25R40Phase: 1 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMG1C40Z4Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.4 kg
WYMG1C40R4Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.4 kg
WYMG1C40Z40Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMG1C40R40Phase: 1 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C10Z4Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C10R4Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C10Z40Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C10R40Phase: 1 | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 170 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C15Z4Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C15R4Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C15Z40Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C15R40Phase: 1 | Rated load current: 15 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C25Z4Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C25R4Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C25Z40Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C25R40Phase: 1 | Rated load current: 25 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 350 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C40Z4Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C40R4Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross) | Weight: 0.5 kg
WYMH1C40Z40Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross | Weight: 0.5 kg
WYMH1C40R40Phase: 1 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 800/1200 V | Peak surge current: 370 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross) | Weight: 0.5 kg
