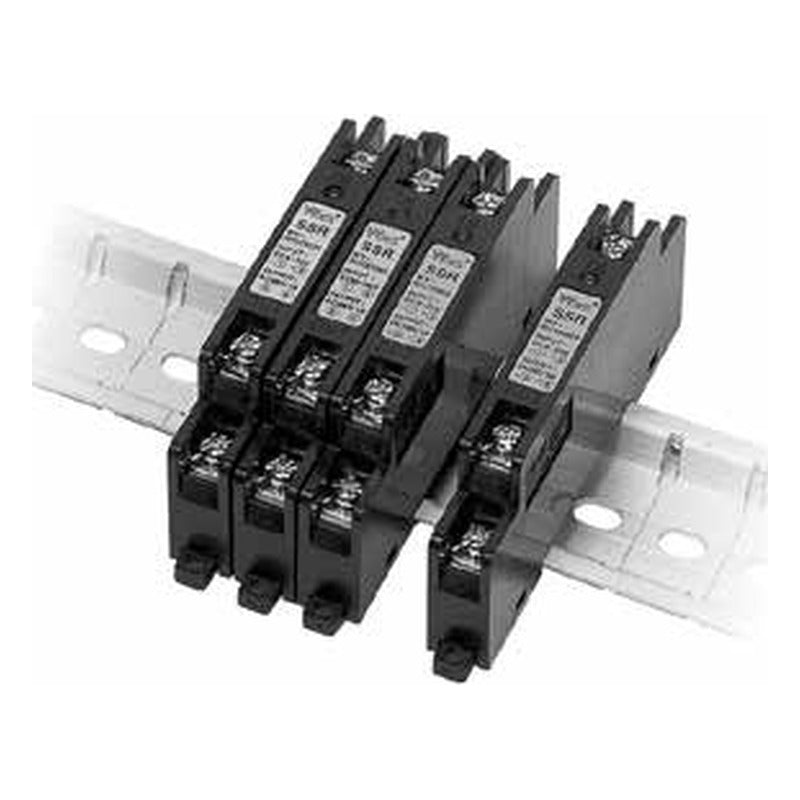

Woonyoung Slim 10mm DIN Rail DC SSR WYR (30-500VDC)

Woonyoung Slim 10mm DIN Rail DC SSR WYR (30-500VDC)

10 mm wide slim DC SSR for DIN rail mounting with an LED lamp to verify the input power connection.

Key features

  • 10 mm width
  • DIN rail mounting
  • LED input indicator
  • DC load switching

Specifications

Input voltage range 4-32 VDC
Output DC
Dielectric strength 1500 VAC / 1 min
Weight 20 g
WYR1C0310D4 Rated voltage: 30 VDC | Voltage range: 5-30 VDC | Rated load current: 10 A
WYR1C0505D4 Rated voltage: 50 VDC | Voltage range: 5-50 VDC | Rated load current: 5 A
WYR1C103D4 Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 3 A
WYR1C201D4 Rated voltage: 200 VDC | Voltage range: 5-200 VDC | Rated load current: 1 A
WYR1C5005D4 Rated voltage: 500 VDC | Voltage range: 5-500 VDC | Rated load current: 0.5 A
Solid State RelaysWoonyoung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Slim 10mm DIN Rail DC SSR WYR (30-500VDC)

Brand Woonyoung·Solid State Relays

Available part numbers (5)

WYR1C0310D4, WYR1C0505D4, WYR1C103D4, WYR1C201D4, WYR1C5005D4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYR1C0310D4Rated voltage: 30 VDC | Voltage range: 5-30 VDC | Rated load current: 10 A
WYR1C0505D4Rated voltage: 50 VDC | Voltage range: 5-50 VDC | Rated load current: 5 A
WYR1C103D4Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 3 A
WYR1C201D4Rated voltage: 200 VDC | Voltage range: 5-200 VDC | Rated load current: 1 A
WYR1C5005D4Rated voltage: 500 VDC | Voltage range: 5-500 VDC | Rated load current: 0.5 A
